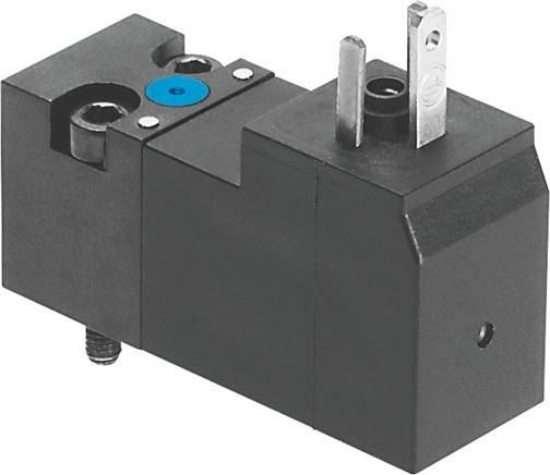

Valve function
|
3/2 closed monostable |
|
Actuation type
|
Electrical |
|
Build.width [mm]
|
15 |
|
Normal nominal flow [l/min]
|
18 |
|
Operating pressure [bar]
|
0 to 10 |
|
Reset mode
|
Mechanical spring |
|
Protection category
|
IP65 |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Complies to standard
|
ISO 15218 |
|
Hand assist actuation
|
tentative |
|
Control type
|
Direct |
|
Flow direction
|
Not reversible |
|
Freedom from cross-talk
|
no |
|
Shifting time off [ms]
|
6 |
|
Shifting time on [ms]
|
6 |
|
Power-on time
|
100% |
|
Coil characteristic value
|
110 V AC: 50/60 Hz, pull-in power 2.9 VA, holding power 2.1 VA |
|
Permitted voltage oscillations
|
-15 % / +10 % |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Medium temperature [°C]
|
-10 to 50 |
|
ambient temperature [°C]
|
-10 to 50 |
|
electrical connection:
|
Wiring diagram Form C acc. to EN 175301-803 |
|
Pneumatic connection 1
|
Connection plate |
|
Pneumatic connection 2
|
Connection plate |
|
Pneumatic connection 3
|
Connection plate |
|
Material information
|
RoHs compliant |
|
Seals material
|
NBR |
|
CE certificate (see declaration of conformity)
|
to EU low voltage directive |
|
Information about force dynamic sampling
|
Switching frequency at least 1x per week |
|
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
Weight
|
49 g / Pcs |
|
GTIN
|
4052568092276 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: VSCS (english) |
|
Document
|
Data sheet |
