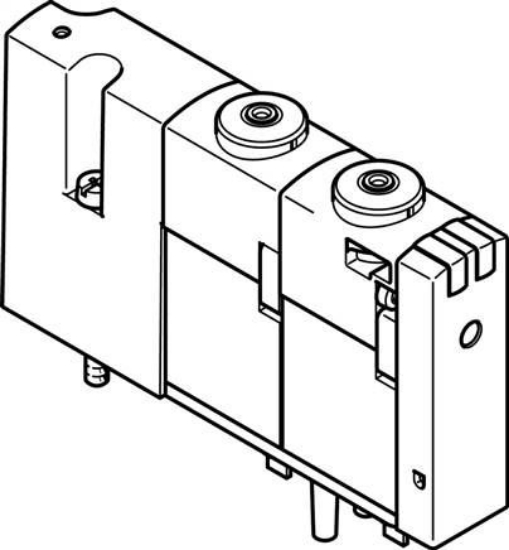

Valve function
|
2x3/2 closed monostable |
Actuation type
|
Electrical |
Valve size [mm]
|
10 |
Operating pressure [bar]
|
0 to 8 |
Construction set up
|
Poppet valve with reset spring |
Reset mode
|
Mechanical spring |
Protection category
|
IP40 |
Permission
|
c UL us - Recognized (OL) |
Nominal width [mm]
|
0,65 |
Exhaust function
|
Cannot be throttled |
Sealing principle
|
Soft |
installation position
|
arbitrary |
Hand assist actuation
|
tentative |
Control type
|
Direct |
Flow direction
|
Not reversible |
Signal condition display
|
LED |
b-value
|
0.24 |
C-value []
|
0,048 |
Flow valve [l/min]
|
10 |
Flow valve pneumatically linked [l/min]
|
10 |
Shifting time off [ms]
|
4,7 |
Shifting time on [ms]
|
5,2 |
Max. positive test impulse at 0 signal [Mikrosekun]
|
600 |
Max. negative test impulse for 1 signal [Mikrosekun]
|
800 |
Coil characteristic value
|
24 V DC: Low current phase 0.3 W, high current phase 1,0 W |
Permitted voltage oscillations
|
± 10 % |
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
Corrosion resistant class KBK
|
1 - low corrosion stress |
Medium temperature [°C]
|
-5 to 50 |
control medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
ambient temperature [°C]
|
-5 to 50 |
Product weight [g]
|
30 |
electrical connection:
|
Via connection plate |
Pneumatic connection 1
|
Connection plate |
Pneumatic connection 2
|
Connection plate |
Pneumatic connection 3
|
Connection plate |
Pneumatic connection 4
|
Connection plate |
Material information
|
RoHs compliant |
Seals material
|
NBR |
Housing material
|
PA reinforced |
Weight
|
30 g / Pcs |
GTIN
|
4052568100001 |
Customs duty number
|
84812090 |
RoHS compliant
|
Yes |
Manufacturer
|
Festo |
Document
|
Group data sheet: Valve terminal VTOC (english) , Data sheet |
