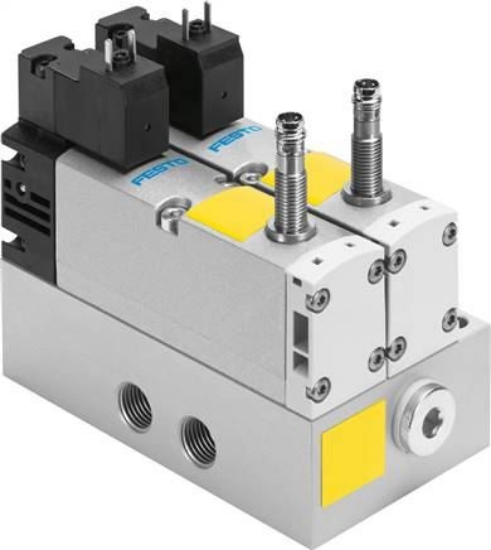

Valve function
|
5/2 monostable |
|
Actuation type
|
Electrical |
|
Build.width [mm]
|
65 |
|
Normal nominal flow [l/min]
|
950 |
|
Operating pressure [bar]
|
3 to 10 |
|
Construction set up
|
Piston pusher |
|
Reset mode
|
Mechanical spring |
|
Protection category
|
IP65 |
|
Permission
|
c UL us - Recognized (OL) |
|
Exhaust function
|
Can be throttled |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Complies to standard
|
EN 60947-5-2 |
|
Hand assist actuation
|
none |
|
Control type
|
pilot operated |
|
Control air supply
|
Internal |
|
Flow direction
|
Not reversible |
|
Measurement principle
|
Inductive |
|
Coverage
|
positive Überdeckung |
|
Reverse polarity protection sensor
|
for all electrical connections |
|
Safety function
|
Manipulation / start up protection |
|
Performance Level (PL)
|
Manipulation safety, protection against unexpected start up to category 4 performance level e |
|
Information about force dynamic sampling
|
Switching frequency at least 1x per week |
|
Signal condition display
|
With Accessories |
|
Switching position query
|
Idle position with sensor |
|
Noise status indicator
|
LED |
|
Control pressure [bar]
|
3 to 10 |
|
Shifting time off [ms]
|
56 |
|
Shifting time on [ms]
|
22 |
|
Valve - sensor switching time on [ms]
|
60 |
|
Valve - sensor switching time off [ms]
|
11 |
|
Power-on time
|
100% |
|
Max. positive test impulse at 0 signal [Mikrosekun]
|
1.000 |
|
Max. negative test impulse for 1 signal [Mikrosekun]
|
800 |
|
Control output
|
NPN |
|
Coil characteristic value
|
24 V DC: 1,8 W |
|
Permitted voltage oscillations
|
-15 % / +10 % |
|
Certified awarding point
|
UL MH19482 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
KC-mark
|
KC-EMV |
|
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Max. magnetic error field
|
60 mT |
|
Medium temperature [°C]
|
-5 to 50 |
|
Noise level [Dezibel (?]
|
85 |
|
Protect against direct and indirect contact
|
Schutzklasse nach EN60950/IEC 950 |
|
control medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
ambient temperature [°C]
|
-5 to 50 |
|
Nominal usage height above normal null
|
1000 m to VDE 0580 |
|
Product weight [g]
|
1.138 |
|
Operating voltage range DC sensor [V]
|
10 to 30 |
|
Short circuit resistance sensor
|
Cycling |
|
Empty run sensor [mA]
|
<= 10 mA |
|
Max. output current sensor [mA]
|
200 |
|
Max. switching frequency sensor [hz]
|
5.000 |
|
Residual ripple sensor
|
± 10 % |
|
Sensor voltage drop [V]
|
<= 2 V |
|
electrical connection:
|
Wiring diagram Form C acc. to EN 175301-803 |
|
Sensor connection
|
M8x1 |
|
Fastening type
|
With throughway bores |
|
Pressure gauge connection
|
G1/4 |
|
Pneumatic connection 1
|
G1/4 |
|
Pneumatic connection 2
|
G1/4 |
|
Pneumatic connection 3
|
G1/4 |
|
Pneumatic connection 4
|
G1/4 |
|
Pneumatic connection 5
|
G1/4 |
|
Material information
|
RoHs compliant |
|
Seals material
|
FKM |
|
Housing material
|
PA |
|
Screws material
|
Steel |
|
Switching element function
|
NC contact |
|
Vacuum capable
|
no |
|
Weight
|
1.138 g / Pcs |
|
GTIN
|
4052568216474 |
|
Customs duty number
|
84812090 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: VOFA (english) , Data sheet |
