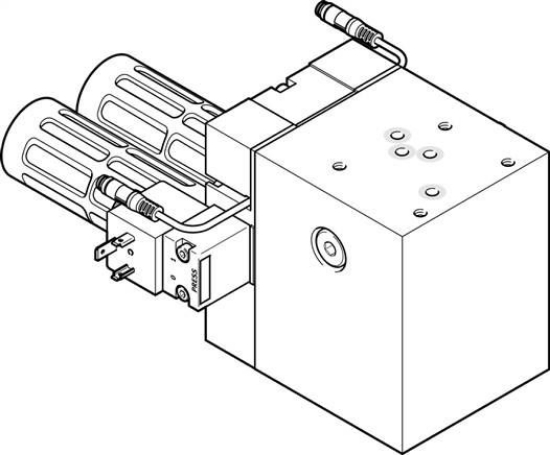

Build.width [mm]
|
90 |
|
Actuation type
|
Electrical |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Hand assist actuation
|
Ratcheting |
|
Construction set up
|
Pre-controlled piston poppet valve |
|
Reset mode
|
Mechanical spring |
|
Switching element function
|
NO contact |
|
Control type
|
pilot operated |
|
Control air supply
|
external |
|
Valve function
|
2x2/2 open monostable |
|
Safety function
|
Venting of the control chamber |
|
Performance Level (PL)
|
Venting of the control chamber / category 3 performance level d |
|
CCF measures
|
Comply with operating nozzle limits |
|
Signal condition display
|
LED |
|
Switching position query
|
Idle position with sensor |
|
Noise status indicator
|
LED |
|
Operating pressure [bar]
|
0 to 50 |
|
Control pressure [bar]
|
6 to 10 |
|
Power-on time
|
100% |
|
Nominal operating voltage DC [V]
|
24 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
CE certificate (see declaration of conformity)
|
to EU machinery directive |
|
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Medium temperature [°C]
|
5 to 50 |
|
control medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
ambient temperature [°C]
|
5 to 50 |
|
Product weight [g]
|
3.500 |
|
Operating voltage range DC sensor [V]
|
10 to 30 |
|
electrical connection:
|
Wiring diagram Form A acc. to EN 175301-803 |
|
Sensor connection
|
M8x1 |
|
Pneumatic connection 10
|
G1/4 |
|
Pneumatic connection 2a
|
G3/4 |
|
Pneumatic connection 2b
|
G3/4 |
|
Material information
|
LABS containing materials included |
|
Housing material
|
aluminium |
|
Weight
|
3.500 g / Pcs |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Data sheet |
