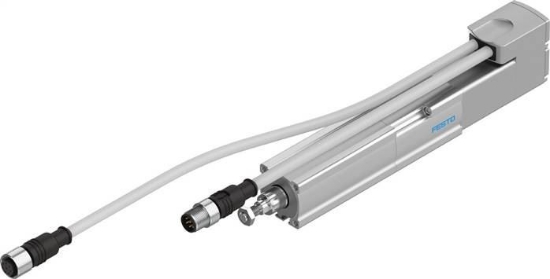

size
|
16 |
|
Stroke [mm]
|
200 |
|
Stroke reserve [mm]
|
0 |
|
Piston rod thread
|
M6 |
|
Reversing play [Mikrometer]
|
100 |
|
Step angle at full step [deg]
|
1,8 |
|
Step angle tolerance
|
±5 % |
|
Spindle diameter [mm]
|
8,0 |
|
Spindle pitch [Millimeter]
|
8,0 |
|
Max. twist angle of the piston rod ± [deg]
|
2,0 |
|
installation position
|
arbitrary |
|
Piston rod end
|
Male thread |
|
Motor type
|
Step motor |
|
Construction set up
|
Electro-cylinder |
|
Spindle type
|
Ball screw drive |
|
Anti-twist lock / guide
|
Slide guided |
|
Rotor position transducer
|
Incremental encoder |
|
Rotor position transducer interface
|
RS422 TTL AB channel + null index |
|
Rotor position transducer measurement principle
|
Visual |
|
Max. acceleration [Meter pro ]
|
10 |
|
Max. speed [m/s]
|
0,300 |
|
Repeatability
|
±0.02 mm |
|
Power-on time
|
100% |
|
Insulation protection class
|
B |
|
Nominal operating voltage DC [V]
|
24 |
|
Nominal current motor [A]
|
1,4 |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Bearing temperature [°C]
|
-20 to 60 |
|
Relative humidity
|
0 - 85 % |
|
Protection category
|
IP40 |
|
ambient temperature [°C]
|
0 to 50 |
|
Permission
|
RCM mark |
|
Impact energy at the end positions [J]
|
0,0001 |
|
Max. torque Mx [Nm]
|
0 |
|
Max. torque My [Nm]
|
0,6 |
|
Max. torque Mz [Nm]
|
0,6 |
|
Max. feed force Fx [N]
|
50 |
|
Guideline payload, horizontal [KGM]
|
8 |
|
Guideline payload, vertical [KGM]
|
4 |
|
Mass inertia JH per metre stroke [Kilogramm ]
|
0,0265 |
|
Mass inertia JL per kg usable load [Kilogramm ]
|
0,0162 |
|
Mass inertia JO [Kilogramm ]
|
0,0229 |
|
Moving mass at 0 mm stroke [g]
|
70 |
|
Weight supplement per 10 mm stroke [g]
|
17 |
|
Base weight at 0 mm stroke [g]
|
615 |
|
Supplement moved mass per 10 mm stroke [g]
|
2,0 |
|
Electrical connection technology
|
Plug |
|
Fastening type
|
With female thread |
|
Material information
|
LABS containing materials included |
|
Cover material
|
Aluminium wrought alloy |
|
Housing material
|
Aluminium wrought alloy |
|
Piston rod material
|
High-alloyed stainless steels |
|
Spindle nut material
|
Steel |
|
Spindle material
|
Roller bearing steel |
|
Cylinder tube material
|
Aluminium wrought alloy |
|
Bending radius, permanent cable placement [mm]
|
>= 60 mm |
|
Weight
|
1,1 kg / Pcs |
|
GTIN
|
4052568233495 |
|
Customs duty number
|
84798997 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: EPCO (english) , Data sheet |
