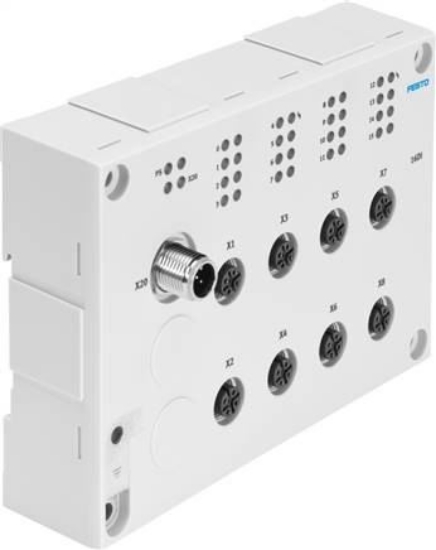

Dimensions W x L x H
|
143 mm x 103 mm x 32 mm |
|
Reverse polarity protection
|
for operating voltage |
|
Fuse (short circuit)
|
Internal electronic fuse Per group |
|
Baud rate
|
38,4 kBit/s, 230,4 kBit/s |
|
Operating voltage range DC [V]
|
18 to 30 |
|
Input debouncing time
|
3 ms (0.5 ms, 10 ms, 20 ms parameterisable) |
|
Max. cumulative currents per module [A]
|
1,2 |
|
Max. number of inputs
|
16 |
|
Nominal operating voltage DC [V]
|
24 |
|
Potential separation channel - channel
|
no |
|
Switch level
|
Signal 0: <= 5 V |
|
Power input in nominal operating voltage Logic [mA]
|
<= 35 mA |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
KC-mark
|
KC-EMV |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Bearing temperature [°C]
|
-20 to 70 |
|
Protection category
|
IP65 |
|
ambient temperature [°C]
|
-5 to 50 |
|
Permission
|
RCM mark |
|
Product weight [g]
|
250 |
|
Report
|
I-port |
|
IO-Link, connection technology
|
Device 5 pin |
|
IO-Link, report
|
Device V 1.0 |
|
IO-Link, communication mode
|
COM2 (38,4 kBaud), COM3 (230,4 kBaud) |
|
IO-Link, port type
|
B |
|
IO-Link, number of ports
|
1 |
|
IO-Link, process data width IN
|
2 Bytes |
|
IO-Link, minimum cycle time
|
Device 3.2 ms |
|
Characteristic curves inputs
|
IEC1131-T2 |
|
Switching logic inputs
|
PNP (Positive switching) |
|
electrical connection:
|
M12 |
|
LED display bus specific
|
X20: I-port/ IO link |
|
LED display product specific
|
1 PS Betriebsspannung elektrisch |
|
Fastening type
|
With throughway bores |
|
Material information
|
RoHs compliant |
|
Cover material
|
PA reinforced |
|
Housing material
|
PA reinforced |
|
Weight
|
250 g / Pcs |
|
GTIN
|
4052568232542 |
|
Customs duty number
|
85389099 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: CTEU (english) , Data sheet |
