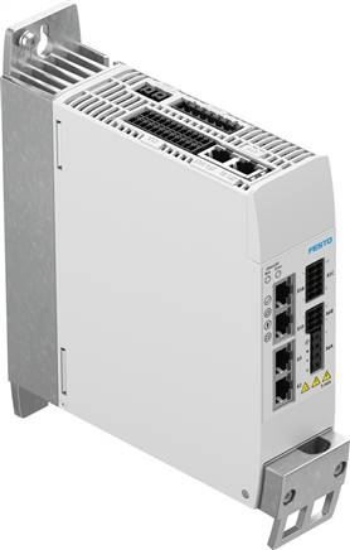

Fastening type
|
Assembly plate, screwed |
|
installation position
|
Open convection |
|
Product weight [g]
|
1.300 |
|
Display
|
LED green / yellow / red |
|
Operating element
|
Optional: Control unit CDSB |
|
CE certificate (see declaration of conformity)
|
acc. to EU-EMV Directive |
|
Bearing temperature [°C]
|
-25 to 55 |
|
ambient temperature [°C]
|
0 to 50 |
|
Information about ambient temperature
|
Oberhalb der Umgebungstemperatur von 40 °C ist eine Leistungsreduktion von 3 %/°C einzuhalten. |
|
UL - ambient temperature [°C]
|
0 to 40 |
|
Relative humidity
|
5 - 90 % |
|
Max. setup height [MTR]
|
2.000 |
|
Information about max. setup height
|
From 1000 m power reduction by 1% per 100 m |
|
Protection category
|
IP20 |
|
Protection class
|
I |
|
Over-voltage category
|
III |
|
Degree of contamination
|
2 |
|
Surge voltage strength [kV]
|
6 |
|
Material information
|
LABS containing materials included |
|
Phase nominal operating voltage
|
1-phase |
|
Nominal operating voltage AC [V]
|
230 |
|
Permitted voltage oscillations
|
-20 % / +15 % |
|
Input voltage range AC [V]
|
100 to 230 |
|
Network frequency [hz]
|
48 to 62 |
|
Nominal current load supply [A]
|
2,8 |
|
Peak current load supply [A]
|
8,4 |
|
Active PFC
|
no |
|
Network filter
|
integrated |
|
System voltage acc. to EN 61800-5-1 [V]
|
300 |
|
Max. short circuit resistance of the network [kA]
|
10 |
|
Network forms
|
TT |
|
Nominal voltage load supply DC [V]
|
320 |
|
Permitted range load supply
|
-20 %/+15 % |
|
Max. intermediate circuit voltage DC [V]
|
395 |
|
Braking resistance, integrated [Ohm]
|
100 |
|
Impulse power braking resistance [kVA]
|
1,6 |
|
Braking resistance pulse energy [Ws]
|
230 |
|
Braking resistance nominal performance (IEC) [W]
|
23 |
|
Braking resistance, external [Ohm]
|
100 to 160 |
|
Max. continuous power of the external braking resistance (IEC) [W]
|
180 |
|
Nominal voltage logic supply DC [V]
|
24 |
|
Permitted range logic voltage
|
± 20 % |
|
Power input logic supply without parking brake [A]
|
0,5 |
|
Power input logic supply with parking brake [A]
|
1,5 |
|
Max. power input for logic supply, parking brake and IO [A]
|
2,3 |
|
Output voltage range AC
|
3x (0 – Input) V |
|
Nominal current per phase, effective [A]
|
2 |
|
Peak current per phase, effective [A]
|
6 |
|
Max. peak current duration [s]
|
2 |
|
Nominal performance controller [Voltampere]
|
350 |
|
Peak performance [Voltampere]
|
1.000 |
|
Output frequency [hz]
|
0 to 599 |
|
Max. length motor line without ext. network filter [MTR]
|
25 |
|
Max. output current holding brake [A]
|
1 |
|
Max. voltage drop from logic supply to brake output [V]
|
0,8 |
|
Quantity of inputs for motor temperature sensor
|
1 |
|
Operating mode controller
|
Autotuning |
|
Operating mode
|
2x Input-Capture (x, v, F) |
|
Ethernet interface, function
|
Parameterising and commissioning |
|
Ethernet interface, report
|
TCP/IP |
|
Fieldbus interface, report
|
PROFINET IRT |
|
Fieldbus coupling
|
Profinet |
|
Communication profile
|
PROFIdrive |
|
Process coupling
|
AC1: Adj.-Speed Drives |
|
Fieldbus interface, transfer rate
|
100 Mbit/s |
|
Fieldbus interface, connection type
|
2x socket |
|
Fieldbus interface, connection technology
|
RJ45 |
|
Encoder interface, function
|
ENDAT 2.1 sensor |
|
Encoder interface 2, function
|
Incremental sensor |
|
Synchronous interface, function
|
Zählsignale CW/CCW |
|
Encoder output interface, properties
|
max. 16348 ppr |
|
Encoder input interface, properties
|
max. 16348 ppr |
|
Quantity digital logic inputs
|
12 |
|
Switching logic inputs
|
PNP (Positive switching) |
|
Properties logic inputs
|
partially freely configurable |
|
Logic input specification
|
depending on IEC 61131-2, type 3 |
|
Work area logic input [V]
|
-3 bis 30 |
|
Quantity of high-speed logic inputs
|
2 |
|
Time resolution of high-speed logic inputs [Mikrosekun]
|
1 |
|
Quantity digital logic outputs 24 V DC
|
6 |
|
Switching logic outputs
|
PNP (Positive switching) |
|
Properties digital logic outputs
|
partially freely configurable |
|
Max. current digital logic outputs [mA]
|
20 |
|
Quantity of high-speed switch outputs
|
2 |
|
Time resolution of high-speed switch outputs [Mikrosekun]
|
1 |
|
Quantity of zero potential switch outputs
|
1 |
|
Max. current of the zero potential switch outputs [mA]
|
50 |
|
Quantity analogue target value inputs
|
1 |
|
Properties target value inputs
|
Differential inputs |
|
Work area target value input
|
± 10 V |
|
Work area analogue inputs
|
± 10 V |
|
Impedance target value input [Kilo-Ohm]
|
70 |
|
Safety function
|
Safe switched off torque (STO) |
|
Safety Integrity Level (SIL)
|
Safe switched off torque (STO) / SIL 3 / SILCL 3 |
|
Performance Level (PL)
|
Safe switched off torque (STO) / Category 4, Performance Level e |
|
Diagnose degree of coverage [%]
|
97 |
|
SFF Safe Failure Fraction [%]
|
99 |
|
Hardware error tolerance
|
1 |
|
Quantity of safe 2-pin inputs
|
2 |
|
Quantity of diagnosis outputs
|
2 |
|
Certified awarding point
|
01/205/5640.00/18 |
|
Weight
|
1.300 g / Pcs |
|
Customs duty number
|
85044084 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: CMMT-AS (english) , Data sheet |
