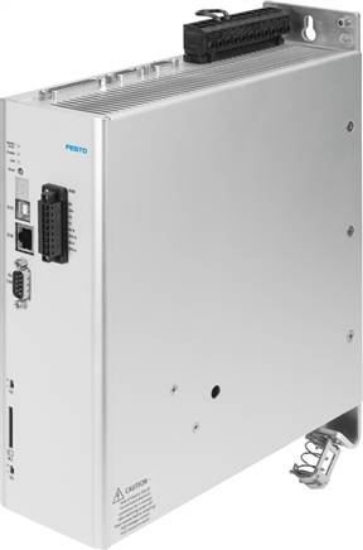

Fastening type
|
on connection plate |
|
Product weight [g]
|
2.100 |
|
Display
|
Seven segment display |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Permission
|
RCM mark |
|
Bearing temperature [°C]
|
-25 to 70 |
|
ambient temperature [°C]
|
0 to 40 |
|
Relative humidity
|
0 - 90 % |
|
Protection category
|
IP10 |
|
Degree of contamination
|
2 |
|
Material information
|
LABS containing materials included |
|
Phase nominal operating voltage
|
1-phase |
|
Nominal operating voltage AC [V]
|
230 |
|
Permitted voltage oscillations
|
± 10 % |
|
Network frequency [hz]
|
50 to 60 |
|
Nominal current [A]
|
2 to 3 |
|
Network filter
|
integrated |
|
Max. intermediate circuit voltage DC [V]
|
320 |
|
Braking resistance [Ohm]
|
60 |
|
Impulse power braking resistance [kVA]
|
2,8 |
|
Nominal voltage logic supply DC [V]
|
24 |
|
Permitted range logic voltage
|
± 20 % |
|
Power input logic supply without parking brake [A]
|
0,55 |
|
Output voltage range AC
|
3x 0 - 270 V |
|
Nominal output current [A]
|
2,5 |
|
Nominal current per phase, effective [A]
|
2,5 |
|
Peak current per phase, effective [A]
|
5 |
|
Max. peak current duration [s]
|
5 |
|
Nominal performance controller [Voltampere]
|
500 |
|
Peak performance [Voltampere]
|
1.000 |
|
Output frequency [hz]
|
0 to 1000 |
|
Parameterising interface
|
USB |
|
Fieldbus coupling
|
CANopen |
|
Communication profile
|
DS301/DSP402 |
|
Process coupling
|
I/O coupling |
|
Max. fieldbus transfer rate [Megabit pr]
|
1 |
|
Bus connector
|
Sub-D |
|
Encoder output interface, properties
|
Resolution 16384 ppr |
|
Encoder output interface, function
|
Actual value feedback via encoder signals for speed control mode |
|
Encoder input interface, properties
|
EnDat |
|
Encoder input interface, function
|
In synchronous mode as a speed preset of the slave actuator |
|
Quantity digital logic inputs
|
10 |
|
Properties logic inputs
|
Freely configurable |
|
Work area logic input [V]
|
8 to 30 |
|
Quantity digital logic outputs 24 V DC
|
5 |
|
Properties digital logic outputs
|
Galvanically separated |
|
Max. current digital logic outputs [mA]
|
100 |
|
Quantity analogue target value inputs
|
2 |
|
Properties target value inputs
|
Differential inputs |
|
Work area target value input
|
± 10 V |
|
Impedance target value input [Kilo-Ohm]
|
20 |
|
Quantity analogue monitor outputs
|
2 |
|
Work area monitor outputs
|
± 10 V |
|
Resolution monitor outputs [Bit]
|
9 |
|
Properties monitor outputs
|
Short circuit proof |
|
Active PFC
|
yes |
|
Safety function
|
Safe switched off torque (STO) |
|
Safety Integrity Level (SIL)
|
Safe switched off torque (STO) / SIL 3 / SILCL 3 |
|
Performance Level (PL)
|
Safe switched off torque (STO) / category 4 performance level e |
|
Diagnose degree of coverage [%]
|
97 |
|
SFF Safe Failure Fraction [%]
|
99,17 |
|
Hardware error tolerance
|
1 |
|
Proof test interval [A]
|
20 |
|
Certified awarding point
|
TÜV Rhineland |
|
Weight
|
2.100 g / Pcs |
|
GTIN
|
4052568243241 |
|
Customs duty number
|
85044084 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: CMMP-AS (english) , Data sheet |
