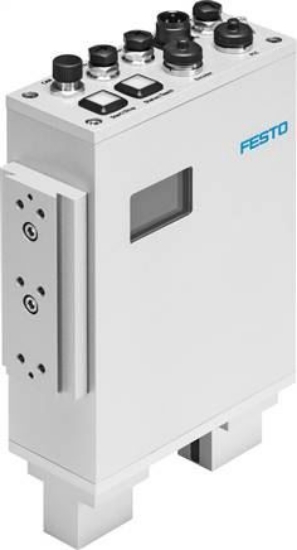

Sensor resolution
|
2048 pixels/row |
|
Pixel size [mm]
|
0,014 |
|
Sensor type
|
CMOS line scan |
|
Max. row frequency sensor [hz]
|
8.500 |
|
Max. number of test programs
|
256 |
|
Max. number of types per test program
|
1 |
|
Max. number of different orientations per type
|
8 |
|
Counter function
|
yes |
|
Number range
|
1 - 9999999 |
|
Volume pre-select
|
Via CheckOpti software |
|
Min. parts length [mm]
|
1 |
|
Max part length
|
Depending on belt speed and required resolution |
|
Min. parts diameter [mm]
|
0,5 |
|
Max. part diameter [mm]
|
25 |
|
Nominal operating voltage DC [V]
|
24 |
|
Permitted voltage oscillations
|
-15 % / +20 % |
|
Power input for unloaded outputs [mA]
|
400 |
|
Internal fuses
|
4 A fuse |
|
Max. switch on current per output channel [A]
|
1,3 |
|
Electronic output limits on [mA]
|
700 |
|
Voltage supply, connection type
|
Plug |
|
Voltage supply, connection technology
|
M18x1 |
|
Voltage supply, number of poles/wires
|
4 |
|
Max. cumulative current, voltage supply [A]
|
3 |
|
Actuator interface, connection type
|
socket / container / …. |
|
Actuator interface, connection technology
|
M12x1 A coded to EN 61076-2-101 |
|
Actuator interface, number of pins / wires
|
5 |
|
Max. cumulative current, actuator interface [A]
|
1,9 |
|
Buffer & feeder interface, connection type
|
socket / container / …. |
|
Buffer & feeder interface, connection technology
|
M12x1 A coded to EN 61076-2-101 |
|
Buffer & feeder interface, number of pins / wires
|
5 |
|
Max. cumulative current, buffer / feeder interface [A]
|
1,9 |
|
PLC interface, connection type
|
socket / container / …. |
|
PLC interface, connection technology
|
M16x0,75 |
|
PLC interface, number of poles/wires
|
24 |
|
Max. cumulative current PLC interface [A]
|
0,9 |
|
Outputs:
|
Error output |
|
Inputs
|
External error |
|
Characteristic curves inputs
|
to IEC 61131-2 type 1 |
|
Ethernet interface, connection type
|
socket / container / …. |
|
Ethernet interface, connection technology
|
M12x1 D coded to EN 61076-2-101 |
|
Ethernet interface, number of pins / wires
|
4 |
|
Ethernet interface, report
|
TCP/IP |
|
Ethernet interface, transfer speed
|
10/100 Mbit/s |
|
Ethernet interface, function
|
Diagnosis |
|
Encoder interface, connection type
|
socket / container / …. |
|
Encoder interface, connection technology
|
M16x0,75 |
|
Encoder interface, number of pins / wires
|
8 |
|
Encoder interface, report
|
RS485 |
|
Fieldbus interface information
|
Not connected |
|
Fieldbus interface, report
|
CAN, is not supported |
|
Housing material
|
Aluminium wrought alloy |
|
Cover material
|
Aluminium wrought alloy |
|
Material information
|
RoHs compliant |
|
Fastening type
|
With female thread |
|
Dimensions W x L x H
|
60 mm x 164 mm x 256.9 mm |
|
Dimensions optical channel W x H
|
59,2 mm x 40 mm |
|
Product weight [g]
|
2.325 |
|
ambient temperature [°C]
|
-5 to 45 |
|
Bearing temperature [°C]
|
-20 to 70 |
|
Protection category
|
IP64 |
|
Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Ambient conditions
|
Cleanest possible ambient air |
|
Photobiological safety
|
Risk group 1 (low risk) to DIN EN 62471:2009-03 |
|
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
Protect against direct and indirect contact
|
Funktionskleinspannung mit sicherer Trennung (PELV) |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Weight
|
2.325 g / Pcs |
|
Customs duty number
|
90314990 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Data sheet , Group data sheet: CHB-C-N |
