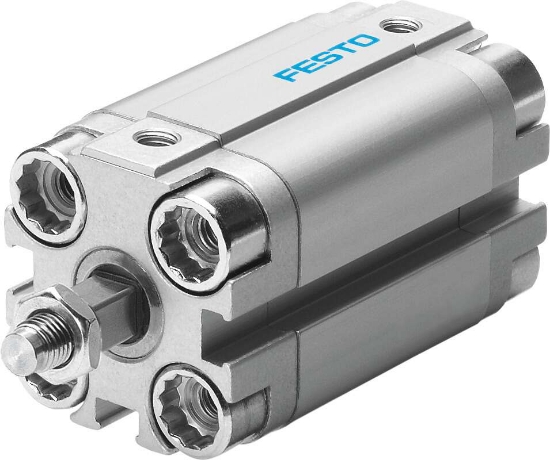

| Stroke |
25 mm |
| Piston diameter |
40 mm |
| Cushioning |
P: Flexible cushioning rings/plates at both ends |
| Assembly position |
Any |
| Mode of operation |
double-acting |
| Piston-rod end |
Male thread |
| Design structure |
Piston
Piston rod |
| Position detection |
For proximity sensor |
| Variants |
Excellent corrosion protection |
| Operating pressure |
0.8 ... 10 bar |
| Operating medium |
Compressed air in accordance with ISO8573-1:2010 [7:4:4] |
| Note on operating and pilot medium |
Lubricated operation possible (subsequently required for further operation) |
| Corrosion resistance classification CRC |
3 |
| Ambient temperature |
-20 ... 80 °C |
| Impact energy in end positions |
0.52 J |
| Theoretical force at 6 bar, return stroke |
686 N |
| Theoretical force at 6 bar, advance stroke |
754 N |
| Moving mass with 0 mm stroke |
63 g |
| Additional weight per 10 mm stroke |
59 g |
| Basic weight for 0 mm stroke |
433 g |
| Additional mass factor per 10 mm of stroke |
9 g |
| Mounting type |
with through hole
with accessories
Optional |
| Pneumatic connection |
G1/8 |
| Materials information for collar screws |
High alloy steel, non-corrosive |
| Materials information for cover |
Wrought Aluminium alloy |
| Materials information for dynamic seals |
TPE-U(PU)
NBR |
| Materials information for piston rod |
High alloy steel, non-corrosive |
| Materials information for cylinder barrel |
Wrought Aluminium alloy |
