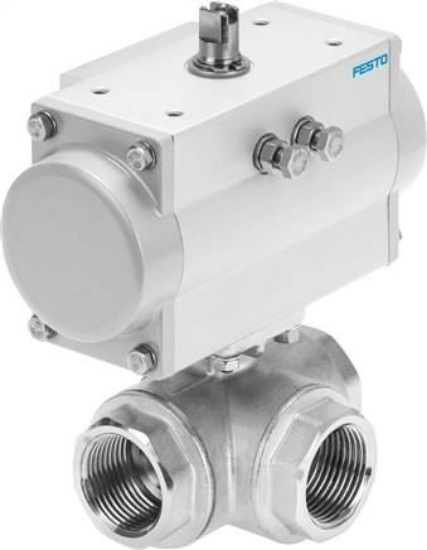

Construction set up
|
Rotary actuator |
|
Actuation type
|
pneumatic |
|
installation position
|
arbitrary |
|
Fastening type
|
pipe installation |
|
Fitting connection
|
Rp1/4 |
|
Switching position display
|
Carriage direction = flow direction |
|
Nominal width DN
|
8 |
|
Nominal pressure fitting
|
25 |
|
medium
|
Compressed air to ISO8573-1:2010 [-:-:-] |
|
Medium temperature [°C]
|
-20 to 130 |
|
Material information
|
LABS containing materials included |
|
Housing material
|
Nickel-plated brass |
|
Material number housing
|
CW617N |
|
Seals material
|
HNBR |
|
Ball material
|
Chrome-plated brass |
|
Material number ball
|
CW614N |
|
Shaft material
|
Brass |
|
Material number shaft
|
CW614N |
|
Product weight [g]
|
1.957 |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Flow Kv L-borehole [Kubikmeter]
|
5,9 |
|
Operating pressure [bar]
|
5.5 to 8 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
ambient temperature [°C]
|
-20 to 80 |
|
Weight
|
1.957 g / Pcs |
|
Customs duty number
|
84818081 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Ball valve actuator units (english) , Data sheet |
