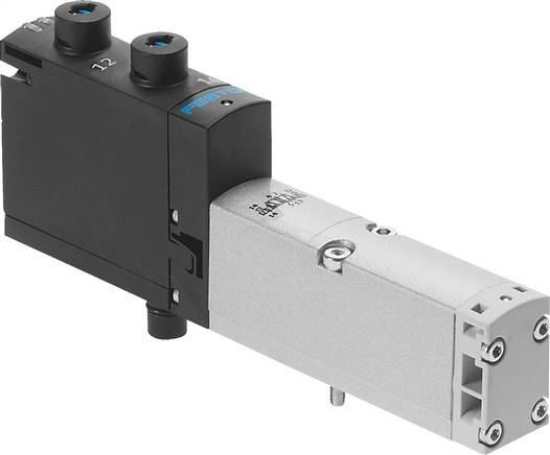

Valve function
|
5/3, connection 2 aired, 4 vented |
|
Actuation type
|
Electrical |
|
Build.width [mm]
|
18 |
|
Normal nominal flow [l/min]
|
380 |
|
Operating pressure [bar]
|
-0.9 to 10 |
|
Construction set up
|
Piston pusher |
|
Protection category
|
IP65 |
|
Exhaust function
|
drosselbar |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Hand assist actuation
|
Ratcheting |
|
Control type
|
pilot operated |
|
Control air supply
|
external |
|
Flow direction
|
arbitrary |
|
Coverage
|
negative Überdeckung |
|
Signal condition display
|
LED |
|
Control pressure [bar]
|
3 to 10 |
|
Flow valve single connection plate [l/min]
|
380 |
|
Flow valve pneumatically linked flow optimised [l/min]
|
440 |
|
Flow valve pneumatically linked [l/min]
|
380 |
|
Power-on time
|
100% |
|
Coil characteristic value
|
24 V DC: 1,6 W |
|
Surge voltage strength [kV]
|
2,5 |
|
Degree of contamination
|
3 |
|
Permitted voltage oscillations
|
± 10 % |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Relative humidity
|
0 - 90 % |
|
ambient temperature [°C]
|
-5 to 50 |
|
Product weight [g]
|
172 |
|
electrical connection:
|
4 pin |
|
Fastening type
|
on connection plate |
|
Support air control connection 12/14
|
Connection plate Size 18 mm to ISO 15407-2 |
|
Exhaust control connection 82/84
|
Not recorded |
|
Pneumatic connection 1
|
Connection plate Size 18 mm to ISO 15407-2 |
|
Pneumatic connection 2
|
Connection plate Size 18 mm to ISO 15407-2 |
|
Pneumatic connection 3
|
Connection plate Size 18 mm to ISO 15407-2 |
|
Pneumatic connection 4
|
Connection plate Size 18 mm to ISO 15407-2 |
|
Pneumatic connection 5
|
Connection plate Size 18 mm to ISO 15407-2 |
|
Material information
|
RoHs compliant |
|
Seals material
|
FKM |
|
Housing material
|
PA |
|
Screws material
|
Zinc-plated steel |
|
Reset mode
|
Mechanical spring |
|
Max. positive test impulse at 0 signal [Mikrosekun]
|
1.500 |
|
Max. negative test impulse for 1 signal [Mikrosekun]
|
800 |
|
Nominal operating voltage DC [V]
|
24 |
|
Nominal width [mm]
|
5 |
|
Medium temperature [°C]
|
-5 to 50 |
|
Noise level [Dezibel (?]
|
85 |
|
Max. tightening torque Valve fastening [Nm]
|
0.8 to 1.2 |
|
Unsymmetrical shifting time off
|
28 ms for pilot side 12 |
|
Unsymmetrical shifting time on
|
9 ms for pilot side 14 |
|
Weight
|
172 g / Pcs |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Valve terminal VTSA / VTSA-F (english) , Data sheet |
