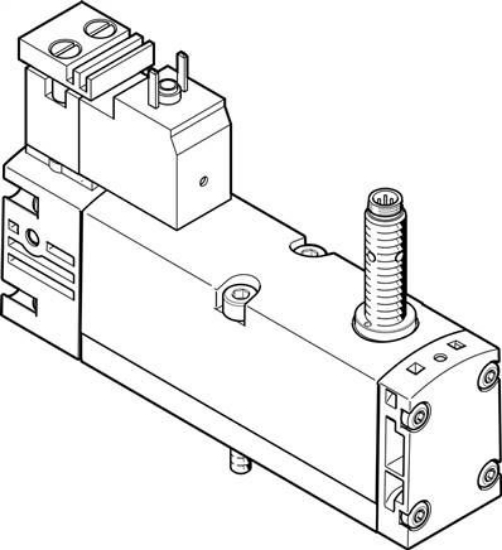

Valve function
|
5/2 monostable |
|
Actuation type
|
Electrical |
|
Normal nominal flow [l/min]
|
1.100 |
|
Operating pressure [bar]
|
-0.9 to 16 |
|
Construction set up
|
Piston pusher |
|
Reset mode
|
Mechanical spring |
|
Protection category
|
IP65 |
|
Permission
|
C-tick |
|
Nominal width [mm]
|
9 |
|
Exhaust function
|
drosselbar |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Complies to standard
|
ISO 15407-1 |
|
Hand assist actuation
|
Covered |
|
Control type
|
pilot operated |
|
Control air supply
|
external |
|
Flow direction
|
arbitrary |
|
Coverage
|
positive Überdeckung |
|
Signal condition display
|
With Accessories |
|
Flow valve [l/min]
|
1.400 |
|
Flow valve single connection plate [l/min]
|
1.100 |
|
Flow valve pneumatically linked [l/min]
|
1.100 |
|
Shifting time off [ms]
|
41 |
|
Shifting time on [ms]
|
21 |
|
Power-on time
|
100% |
|
Max. positive test impulse at 0 signal [Mikrosekun]
|
1.000 |
|
Max. negative test impulse for 1 signal [Mikrosekun]
|
800 |
|
Coil characteristic value
|
24 V DC: 1,8 W |
|
Permitted voltage oscillations
|
-15 % / +10 % |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Medium temperature [°C]
|
-5 to 50 |
|
Relative humidity
|
0 - 90 % |
|
Noise level [Dezibel (?]
|
85 |
|
ambient temperature [°C]
|
-5 to 50 |
|
Max. tightening torque Valve fastening [Nm]
|
1.8 to 2.2 |
|
Product weight [g]
|
289 |
|
electrical connection:
|
Wiring diagram Form C acc. to EN 175301-803 |
|
Fastening type
|
on connection plate |
|
Exhaust control connection 82/84
|
Not recorded |
|
Pneumatic connection 1
|
Connection plate Size 26 mm to ISO 15407-1 |
|
Pneumatic connection 2
|
Connection plate Size 26 mm to ISO 15407-1 |
|
Pneumatic connection 3
|
Connection plate Size 26 mm to ISO 15407-1 |
|
Pneumatic connection 4
|
Connection plate Size 26 mm to ISO 15407-1 |
|
Pneumatic connection 5
|
Connection plate Size 26 mm to ISO 15407-1 |
|
Pre-control interface
|
acc. to ISO 15218 |
|
Material information
|
RoHs compliant |
|
Seals material
|
FKM |
|
Housing material
|
PA |
|
Screws material
|
Zinc-plated steel |
|
Control pressure [bar]
|
3 to 10 |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Build.width [mm]
|
26 |
|
Measurement principle
|
Inductive |
|
Reverse polarity protection sensor
|
for all electrical connections |
|
Switching position query
|
Idle position with sensor |
|
Noise status indicator
|
LED |
|
Valve - sensor switching time on [ms]
|
60 |
|
Valve - sensor switching time off [ms]
|
11 |
|
Nominal operating voltage DC [V]
|
24 |
|
Control output
|
PNP |
|
Certified awarding point
|
UL MH19482 |
|
KC-mark
|
KC-EMV |
|
Operating voltage range DC sensor [V]
|
10 to 30 |
|
Short circuit resistance sensor
|
Cycling |
|
Empty run sensor [mA]
|
<= 10 mA |
|
Max. output current sensor [mA]
|
200 |
|
Max. switching frequency sensor [hz]
|
5.000 |
|
Residual ripple sensor
|
± 10 % |
|
Sensor voltage drop [V]
|
<= 2 V |
|
Sensor connection
|
M8x1 |
|
Support air control connection 12/14
|
Connection plate Size 26 mm to ISO 15407-1 |
|
Switching element function
|
NC contact |
|
Weight
|
289 g / Pcs |
|
GTIN
|
4052568207595 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Valve terminal VTSA / VTSA-F (english) |
|
Document
|
Data sheet |
