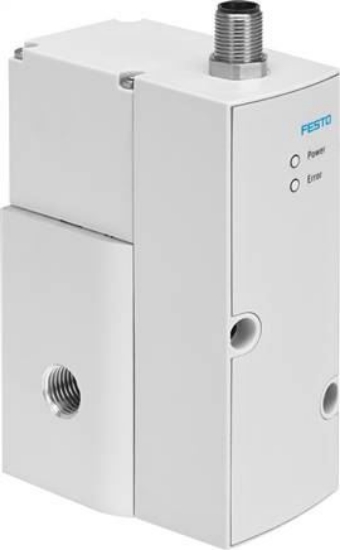

Nominal width ventilation [mm]
|
8 |
|
Nominal width venting [mm]
|
7,0 |
|
Actuation type
|
Electrical |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Construction set up
|
Pre-controlled membrane control valve |
|
Short circuit resistance
|
for all electrical connections |
|
Safety instructions
|
Safety position VPPX |
|
Reverse polarity protection
|
for all electrical connections |
|
Reset mode
|
Mechanical spring |
|
Control type
|
pilot operated |
|
Valve function
|
3-way proportional pressure regulator valve |
|
Display type
|
LED |
|
Pressure regulation range [bar]
|
0.1 to 10 |
|
Input pressure 1 [bar]
|
0 to 11 |
|
Max. pressure hysteresis [bar]
|
0,05 |
|
Normal nominal flow [l/min]
|
2.750 |
|
Operating voltage range DC [V]
|
21.6 to 26.4 |
|
Max. power input [mA]
|
300 |
|
Power-on time
|
100% |
|
Max. electrical power consumption [W]
|
7 |
|
residual ripple
|
10 % |
|
Signal range analogue output
|
0 - 10 V |
|
Signal range analogue input
|
0 - 10 V |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation not possible |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
KC-mark
|
KC-EMV |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Medium temperature [°C]
|
10 to 50 |
|
Protection category
|
IP65 |
|
ambient temperature [°C]
|
0 to 60 |
|
Permission
|
RCM mark |
|
Product weight [g]
|
560 |
|
Linearity error FS [%]
|
1 |
|
Temperature coefficient [%/K]
|
0,04 |
|
Repeatability FS [%]
|
0,5 |
|
Repeatability in ± %FS []
|
0,5 |
|
electrical connection:
|
M12 |
|
Fastening type
|
With throughway bores |
|
Pneumatic connection 1
|
G1/4 |
|
Pneumatic connection 2
|
G1/4 |
|
Pneumatic connection 3
|
G1/4 |
|
Material information
|
RoHs compliant |
|
Housing material
|
Aluminium wrought alloy |
|
Weight
|
560 g / Pcs |
|
GTIN
|
4052568217594 |
|
Customs duty number
|
84811099 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: VPPX (english) , Data sheet |
