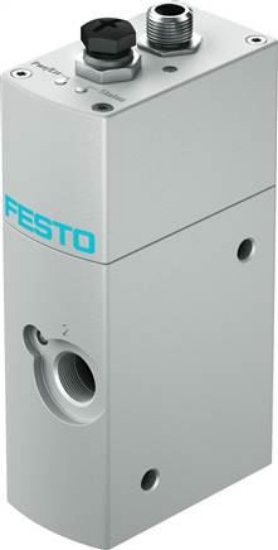

Valve function
|
3-way proportional flow control valve |
|
Construction set up
|
Piston pusher |
|
Control type
|
Direct |
|
Actuation type
|
Electrical |
|
Reset mode
|
Spring magnetic |
|
Flow direction
|
Not reversible |
|
installation position
|
arbitrary |
|
Sealing principle
|
Hard |
|
Nominal width [mm]
|
6 |
|
Short circuit resistance
|
yes |
|
Display type
|
LED |
|
Flow measurement range [l/min]
|
0 to 1500 |
|
Operating pressure [bar]
|
1 to 10 |
|
Flow control range [l/min]
|
30 to 1500 |
|
Information about flow control range
|
Control is done from 30 l/min, below this target value the flow control valve is switched to the venting position |
|
Repeatability in ± %FS []
|
0,5 |
|
Absolute precision in ± %FS at room temperature []
|
3 |
|
Hysteresis FS []
|
0,8 |
|
ambient temperature [°C]
|
0 to 50 |
|
Medium temperature [°C]
|
15 to 35 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [6:4:4] |
|
Information about operating and control medium
|
Oiled operation not possible |
|
Protection category
|
IP65 |
|
Information about protection category
|
In mounted condition |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Material information
|
RoHs compliant |
|
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Permission
|
RCM mark |
|
ATEX gas category
|
II 3G |
|
Ex ignition protection type gas
|
Ex nA IIC T5 X Gc |
|
ATEX dust category
|
II 3D |
|
Ex ignition protection type dust
|
Ex tc IIIC T60°C X Dc |
|
Ex ambient temperature
|
0°C <= Ta <= +50°C |
|
Nominal operating voltage DC [V]
|
24 |
|
Operating voltage range DC [V]
|
20.4 to 30 |
|
residual ripple
|
5 % |
|
Max. power input [A]
|
1,2 |
|
Power input for unloaded outputs [mA]
|
150 |
|
Control output
|
PNP |
|
Control input
|
PNP |
|
Current carrying capacity per output [mA]
|
100 |
|
Reverse polarity protection
|
for operating voltage |
|
Power-on time
|
100% |
|
Max. electrical power consumption [W]
|
36 |
|
Signal range analogue output
|
0 - 10 V |
|
Signal range analogue input
|
0 - 10 V |
|
Diagnose function
|
Display via LED |
|
electrical connection:
|
M12x1 |
|
Fastening type
|
Direct fastening via throughway bores |
|
Pneumatic connection 1
|
G3/8 |
|
Pneumatic connection 2
|
G3/8 |
|
Pneumatic connection 3
|
G3/8 |
|
Product weight [g]
|
856 |
|
Housing material
|
Aluminium wrought alloy, anodised |
|
Seals material
|
FPM |
|
Weight
|
856 g / Pcs |
|
Customs duty number
|
84812090 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: VPCF (english) |
|
Document
|
Data sheet |
