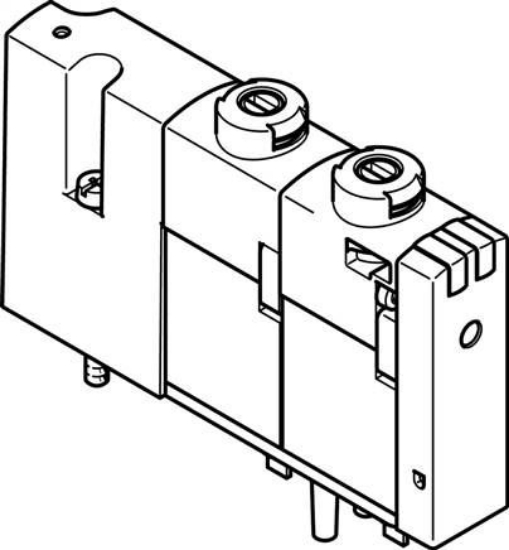

Valve function
|
2x3/2 closed monostable |
|
Actuation type
|
Electrical |
|
Valve size [mm]
|
10 |
|
Operating pressure [bar]
|
0 to 8 |
|
Construction set up
|
Poppet valve with reset spring |
|
Reset mode
|
Mechanical spring |
|
Protection category
|
IP40 |
|
Permission
|
c UL us - Recognized (OL) |
|
Nominal width [mm]
|
0,65 |
|
Exhaust function
|
Cannot be throttled |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Hand assist actuation
|
Ratcheting |
|
Control type
|
Direct |
|
Flow direction
|
Not reversible |
|
Signal condition display
|
LED |
|
b-value
|
0.24 |
|
C-value []
|
0,048 |
|
Flow valve [l/min]
|
10 |
|
Flow valve pneumatically linked [l/min]
|
10 |
|
Shifting time off [ms]
|
4,7 |
|
Shifting time on [ms]
|
5,2 |
|
Max. positive test impulse at 0 signal [Mikrosekun]
|
600 |
|
Max. negative test impulse for 1 signal [Mikrosekun]
|
800 |
|
Coil characteristic value
|
24 V DC: Low current phase 0.3 W, high current phase 1,0 W |
|
Permitted voltage oscillations
|
± 10 % |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Medium temperature [°C]
|
-5 to 50 |
|
control medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
ambient temperature [°C]
|
-5 to 50 |
|
Product weight [g]
|
30 |
|
electrical connection:
|
Via connection plate |
|
Pneumatic connection 1
|
Connection plate |
|
Pneumatic connection 2
|
Connection plate |
|
Pneumatic connection 3
|
Connection plate |
|
Pneumatic connection 4
|
Connection plate |
|
Material information
|
RoHs compliant |
|
Seals material
|
NBR |
|
Housing material
|
PA reinforced |
|
Weight
|
30 g / Pcs |
|
GTIN
|
4052568100018 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Valve terminal VTOC (english) , Data sheet |
