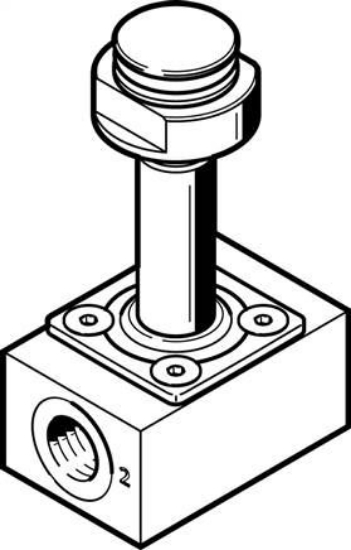

Valve function
|
3/2 closed monostable |
|
Actuation type
|
Electrical |
|
Build.width [mm]
|
50,0 |
|
Normal nominal flow [l/min]
|
52 |
|
Operating pressure [bar]
|
0 to 8 |
|
Construction set up
|
Directly controlled poppet valve |
|
Reset mode
|
Mechanical spring |
|
Protection category
|
IP65 |
|
Nominal width [mm]
|
1,2 |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Hand assist actuation
|
none |
|
Control type
|
Direct |
|
Flow direction
|
Not reversible |
|
Vacuum capable
|
yes |
|
b-value
|
0.53 |
|
C-value []
|
0,21 |
|
Flow Kv venting [Kubikmeter]
|
0,04 |
|
Flow Kv venting [Kubikmeter]
|
0,04 |
|
Normal nominal flow 2-3 [l/min]
|
49 |
|
Shifting time off [ms]
|
60 |
|
Shifting time on [ms]
|
40 |
|
Operating medium
|
Druckl. ISO8573-1:2010[7:2:2] |
|
Corrosion resistant class KBK
|
4 - particularly severe corrosion stress |
|
Medium temperature [°C]
|
-25 to 60 |
|
ambient temperature [°C]
|
-25 to 60 |
|
Product weight [g]
|
170 |
|
Pneumatic connection 1
|
G1/4 |
|
Pneumatic connection 2
|
G1/4 |
|
Pneumatic connection 3
|
G1/4 |
|
Material information
|
LABS containing materials included |
|
Seals material
|
NBR |
|
Housing material
|
Aluminium ematal coated |
|
Weight
|
170 g / Pcs |
|
Customs duty number
|
84812090 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: VOFD (english) |
|
Document
|
Data sheet |
