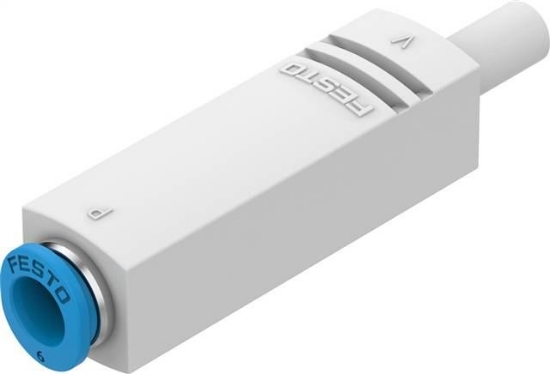

Nominal width laval nozzle [mm]
|
0,70 |
|
Pitch dimension [mm]
|
13,0 |
|
installation position
|
arbitrary |
|
Ejector characteristic
|
in-line |
|
Construction set up
|
straight shape |
|
Operating pressure for max. suction volume flow [bar]
|
7,0 |
|
Operating pressure [bar]
|
1 to 8 |
|
Operating pressure for max. vacuum [bar]
|
5,8 |
|
max. vacuum [%]
|
86 |
|
Nominal operating pressure [bar]
|
6 |
|
Max. suction volume current against atmosphere [l/min]
|
13,5 |
|
Venting time for nominal operating pressure [s]
|
2,00 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation not possible |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Medium temperature [°C]
|
0 to 60 |
|
ambient temperature [°C]
|
0 to 60 |
|
Product weight [g]
|
12 |
|
Fastening type
|
pipe installation |
|
Pneumatic connection 1
|
QS-6 |
|
Pneumatic connection 3
|
Not recorded |
|
vacuum connection
|
Plug sleeve QS-6 |
|
Material information
|
Copper and PTFE-free |
|
Seals material
|
NBR |
|
Capture nozzle material
|
POM |
|
Housing material
|
POM reinforced |
|
Jet nozzle material
|
Aluminium wrought alloy |
|
Screw connection material
|
brass |
|
Weight
|
12 g / Pcs |
|
GTIN
|
4052568080167 |
|
Customs duty number
|
84141089 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: VN (english) , Data sheet |
