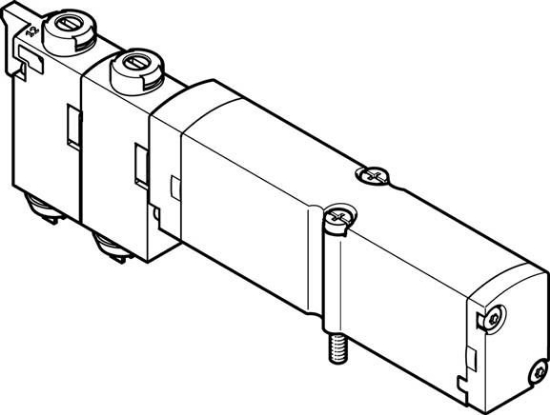

Valve function
|
2x2/2 closed monostable |
Actuation type
|
Electrical |
Valve size [mm]
|
14 |
Normal nominal flow [l/min]
|
650 |
Operating pressure [bar]
|
3 to 10 |
Construction set up
|
Piston pusher |
Reset mode
|
Pneumatic spring |
Protection category
|
IP65 |
Permission
|
c CSA us (OL) |
Sealing principle
|
Soft |
installation position
|
arbitrary |
Hand assist actuation
|
Ratcheting |
Control type
|
pilot operated |
Flow direction
|
Not reversible |
Coverage
|
positive Überdeckung |
Signal condition display
|
yes |
Control pressure [bar]
|
3 to 8 |
Vacuum capable
|
no |
Shifting time off [ms]
|
30 |
Shifting time on [ms]
|
12 |
Max. positive test impulse at 0 signal [Mikrosekun]
|
400 |
Max. negative test impulse for 1 signal [Mikrosekun]
|
200 |
Permitted voltage oscillations
|
± 25 % |
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
Corrosion resistant class KBK
|
1 - low corrosion stress |
Bearing temperature [°C]
|
-20 to 40 |
Medium temperature [°C]
|
-5 to 50 |
Relative humidity
|
max. 90 % at 40 °C |
ambient temperature [°C]
|
-5 to 50 |
Max. tightening torque Valve fastening [Nm]
|
0,65 |
Product weight [g]
|
77 |
Fastening type
|
With throughway bores |
Material information
|
RoHs compliant |
Seals material
|
NBR |
Housing material
|
Aluminium die casting |
Normal nominal flow with QS-8 [l/min]
|
650 |
CE certificate (see declaration of conformity)
|
to EU EMC directive |
Weight
|
77 g / Pcs |
GTIN
|
4052568220990 |
Customs duty number
|
84812090 |
RoHS compliant
|
Yes |
Manufacturer
|
Festo |
Document
|
Group data sheet: Valve terminal MPA-L (english) , Data sheet |
