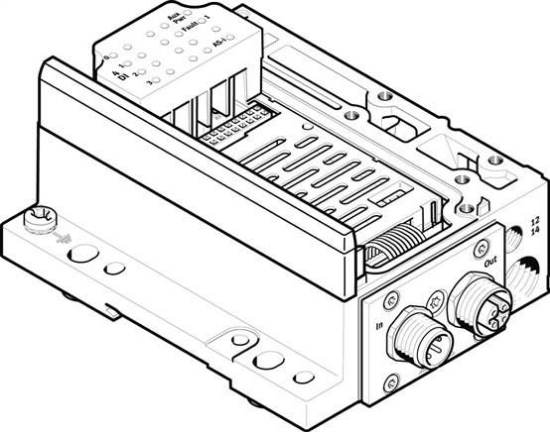

Protection category
|
IP20 |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Product weight [g]
|
360 |
|
Material information
|
RoHs compliant |
|
ambient temperature [°C]
|
-5 to 50 |
|
Housing material
|
PA |
|
Dimensions W x L x H
|
85 mm x 122.9 mm x 55.1 mm |
|
Fieldbus interface
|
Socket, M12 (ASI Out) |
|
Device specific diagnosis
|
Watchdog / IO status |
|
Max. number of valve spaces
|
4 |
|
Response delay inputs
|
Typical: 3 ms at 24 V |
|
Quantity slaves per device
|
1 |
|
Operating voltage range DC electronics / sensor
|
US+ / US- : <= AS-Interface bus voltage - 2,5V |
|
Operating voltage DC AS interface [V]
|
26.5 to 31.6 |
|
Operating voltage DC load voltage [V]
|
21.6 to 26.4 |
|
Information about load voltage
|
Via load voltage connection (24 V DC) |
|
Logic level digital inputs
|
OFF: -30 - 5V |
|
Max. number of inputs
|
4 |
|
Residual ripple AS interface
|
<= 20 mVss |
|
Residual ripple load voltage
|
4 Vss |
|
Power input for load supply from AS interface and load voltage connection
|
Max. cumulative inputs 350 mA |
|
Bearing temperature [°C]
|
-20 to 40 |
|
Characteristic curves inputs
|
to IEC 1131-2 type 02 |
|
Switching logic inputs
|
PNP (Positive switching) |
|
Addressing area
|
1 ... 31 |
|
LED display bus specific
|
AS-i: As interface Operation |
|
LED display product specific
|
Signal at input / output |
|
Product identification
|
ID-Code: ID=Fh, ID1=Fh, ID2=Eh |
|
Fastening type
|
With throughway bores |
|
Weight
|
360 g / Pcs |
|
GTIN
|
4052568185640 |
|
Customs duty number
|
85371098 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Valve terminal MPA-S (english) , Data sheet |
