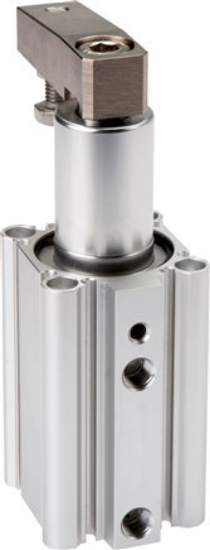

Materials:
Body: Aluminium anodised, piston rod: hard chromium plated steel, seals: NBR / PUR
Temperature range:
-10°C to +70°C
Operating pressure:
1,5 - 10 bar
Swivel angle:
90° (± 10°)
Version:
With Magnetic piston
Note:
•only operate cylinders positioned vertically or suspended
•clamps only allowed inside the clamping stroke and on level surfaces,
•workpiece must be idle during clamping process
Advantages:
•simple mechanics, robust construction
•supplied with removable lever arm, which can be adjusted in 90° increments
•Main dimensions identical to SMC Series MKB
Cylinder switch type:
D
| عنوان ویژگی |
مقدار ویژگی |
|
Piston Ø [mm]
|
32 |
|
effective piston Ø during clamping [mm]
|
27,7 |
|
Version
|
left turning* (turns counter-clockwise at terminals) |
|
Clamping stroke [mm]
|
10 |
|
Repair sets
|
SQK 32 REP |
|
Rotary lift [mm]
|
15,0 |
|
A [mm]
|
45 |
|
A1 [mm]
|
49,5 |
|
B [mm]
|
6,5 |
|
C [mm]
|
34,0 |
|
D [mm]
|
14 |
|
E [mm]
|
12 - 25 |
|
F [mm]
|
13,0 |
|
G [mm]
|
G 1/8" |
|
H [mm]
|
16 |
|
I [mm]
|
10 |
|
M (retracted) [mm]
|
45,5 |
|
M (extended) [mm]
|
70,5 |
|
N [mm]
|
18 |
|
O [mm]
|
67 |
|
P [mm]
|
45 |
|
Q [mm]
|
30,5 |
|
R [mm]
|
71,5 |
|
S [mm]
|
20,0 |
|
U [mm]
|
20 |
|
V [mm]
|
M 8 |
|
Y (+0/-0,05) [mm]
|
30 |
|
Weight
|
650 g / Pcs |
|
Customs duty number
|
84123100 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
EMC |
|
Document
|
Catalogue page Atlas 9, Data sheet |
