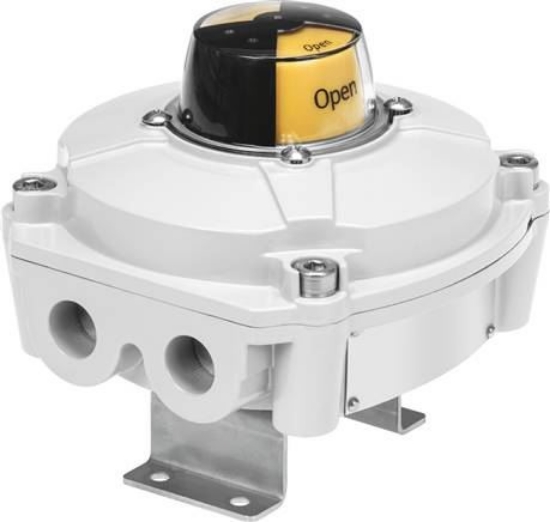

Design
|
Angular |
|
Based on standard
|
EN 60947-5-2 |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
ATEX gas category
|
II 2G |
|
Ex ignition protection type gas
|
AEx d IIB T5 Gb |
|
ATEX dust category
|
II 2D |
|
Ex ignition protection type dust
|
AEx tb IIIC T108°C Db |
|
Ex protection approval outside of the EU
|
Class I, Div. 1 (CA) |
|
Ex ambient temperature
|
-20°C <= Ta <= +60°C |
|
Certified awarding point
|
CSA 263311 |
|
Material information
|
LABS containing materials included |
|
Safety Integrity Level (SIL)
|
SIL 2 |
|
Measurement principle
|
Inductive |
|
ambient temperature [°C]
|
-20 to 60 |
|
Control output
|
NPN |
|
Switching element function
|
NO contact |
|
Max. output current DC [mA]
|
100 |
|
Operating voltage range DC [V]
|
10 to 30 |
|
electrical connection:
|
10 pin |
|
Lockable conductor nominal cross-section [mm²]
|
0.25 to 2.5 |
|
Cable screwing
|
NPT1/2 |
|
Fastening type
|
on flange according to ISO 5211 |
|
installation position
|
arbitrary |
|
Product weight [g]
|
1.700 |
|
Housing colour
|
#EDEDED |
|
Housing material
|
Aluminium die casting |
|
Seals material
|
NBR |
|
Shaft material
|
High-alloyed stainless steels |
|
Screws material
|
High-alloyed stainless steels |
|
Mounting bracket material
|
High-alloyed stainless steels |
|
Pointer material
|
PC |
|
Circlip material
|
High-alloyed stainless steels |
|
Washer material
|
High-alloyed stainless steels |
|
position indicator
|
yellow / red |
|
Settings range angle recording [deg]
|
0 to 90 |
|
Bearing temperature [°C]
|
-20 to 60 |
|
Protection category
|
IP67 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
|
Degree of contamination
|
3 |
|
Permission
|
RCM mark |
|
Voltage drop [V]
|
<= 3 V |
|
Residual current [mA]
|
0 to 0.5 |
|
Short circuit resistance
|
Cycling |
|
Empty run current [mA]
|
<= 15 mA |
|
Reverse polarity protection
|
for all electrical connections |
|
Weight
|
1.700 g / Pcs |
|
Customs duty number
|
85371098 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SRBE (english) , Data sheet |
