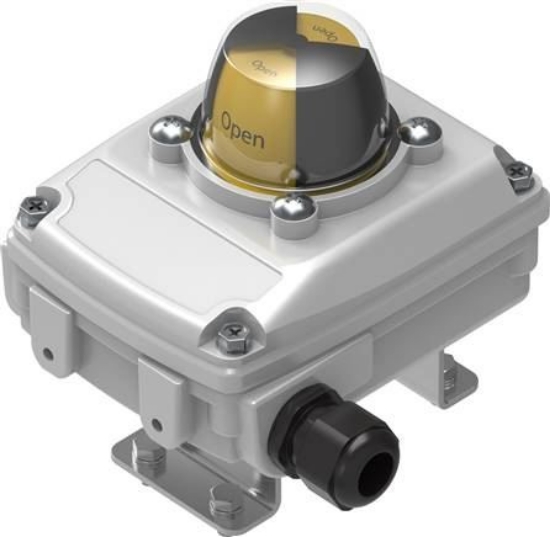

Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
acc. to EU-EMV Directive |
|
Material information
|
LABS containing materials included |
|
Safety Integrity Level (SIL)
|
SIL 2 |
|
ambient temperature [°C]
|
-20 to 80 |
|
Control output
|
NAMUR |
|
Switching element function
|
NC contact |
|
Max. output current DC [mA]
|
3 |
|
Operating voltage range DC [V]
|
8,2 |
|
electrical connection:
|
10 pin |
|
Lockable conductor nominal cross-section [mm²]
|
0.25 to 2.5 |
|
Cable screwing
|
M20x1,5 |
|
Permitted cable diameter [mm]
|
6 to 12 |
|
Fastening type
|
on flange according to ISO 5211 |
|
installation position
|
arbitrary |
|
Product weight [g]
|
800 |
|
Housing material
|
Aluminium die casting |
|
Seals material
|
NBR |
|
Shaft material
|
High-alloyed stainless steels |
|
Screws material
|
High-alloyed stainless steels |
|
Blind stopper material
|
PA |
|
Mounting bracket material
|
High-alloyed stainless steels |
|
Pointer material
|
PC |
|
Cable connection material
|
PA |
|
Circlip material
|
High-alloyed stainless steels |
|
Washer material
|
High-alloyed stainless steels |
|
position indicator
|
yellow / red |
|
Settings range angle recording [deg]
|
0 to 90 |
|
Bearing temperature [°C]
|
-20 to 80 |
|
Protection category
|
IP67 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
|
Degree of contamination
|
3 |
|
ATEX gas category
|
II 1G |
|
Ex ignition protection type gas
|
Ex ia IIC T6/T5 Ga |
|
ATEX dust category
|
II 1D |
|
Ex ignition protection type dust
|
Ex ia IIIC Txx°C Da |
|
Ex protection approval outside of the EU
|
EPL Da (IEC-EX) |
|
Ex ambient temperature
|
see ATEX Certificate |
|
Max. input voltage [V]
|
16 |
|
Effective inductivity
|
100 µH |
|
Effective capacity
|
100 nF |
|
Max. input parameter intrinsically safe circuit
|
see ATEX Certificate |
|
Certified awarding point
|
FTZU 17 ATEX 0105X |
|
Weight
|
800 g / Pcs |
|
Customs duty number
|
85371098 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SRBC (english) |
|
Document
|
Data sheet |
