Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Material information
|
LABS containing materials included |
|
Measured parameter
|
Position |
|
Measurement principle
|
Optoelectronic |
|
Measurement process
|

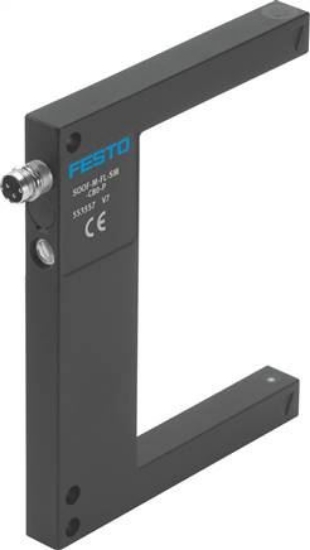

Forked light curtain |
|
Light type
|
|
|
Minimum object diameter [mm]
|
0,5 |
|
ambient temperature [°C]
|
-10 to 60 |
|
Repeatability [mm]
|
0,06 |
|
Control output
|
NPN |
|
Switching element function
|
Switchable |
|
Hysteresis [mm]
|
<= 0,25 mm |
|
Max. switching frequency [hz]
|
4.000 |
|
Max. output current [mA]
|
200 |
|
Short circuit resistance
|
Cycling |
|
Operating voltage range DC [V]
|
10 to 35 |
|
residual ripple
|
± 5 % |
|
Empty run current [mA]
|
30,0 |
|
Reverse polarity protection
|
for operating voltage connections |
|
electrical connection:
|
M8x1 |
|
size
|
Fork 80x55 mm |
|
Fork width [mm]
|
80 |
|
Product weight [g]
|
130 |
|
Housing material
|
painted |
|
Switching status indicator
|
LED yellow |
|
Setting options
|
Potentiometer |
|
Protection category
|
IP67 |
|
Insulation voltage [V]
|
50 |
|
Surge voltage strength [kV]
|
0,8 |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Degree of contamination
|
3 |
|
Weight
|
130 g / Pcs |
|
GTIN
|
4052568197575 |
|
Customs duty number
|
85365019 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SOOF (english) , Data sheet |
