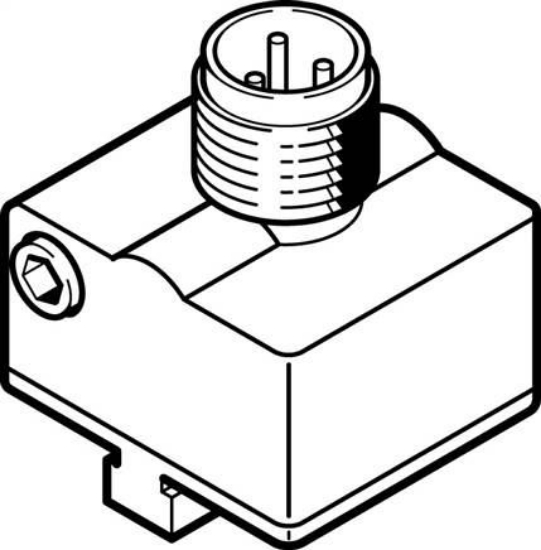

Design
|
For T-slot |
|
Material information
|
Copper and PTFE-free |
|
Measurement principle
|
Reed magnetic |
|
ambient temperature [°C]
|
-20 to 60 |
|
Control output
|
Bipolar contact |
|
Switching element function
|
NO contact |
|
Reproducibility of the switching value
|
± 0,1 mm |
|
Switch on time [ms]
|
<= 2 ms |
|
Switch off time [ms]
|
0,03 |
|
Max. switching frequency [hz]
|
500 |
|
Max. output current [mA]
|
120 |
|
Max. switching capacity AC [Voltampere]
|
10 |
|
Max. switching capacity DC [W]
|
10 |
|
Voltage drop [V]
|
3,9 |
|
Short circuit resistance
|
no |
|
Overload resistant
|
Not available |
|
Operating voltage range AC [V]
|
3 to 230 |
|
Operating voltage range DC [V]
|
3 to 250 |
|
Reverse polarity protection
|
no |
|
electrical connection:
|
M12x1 |
|
Connection outlet direction
|
along |
|
Fastening type
|
With Accessories |
|
Torque [Nm]
|
0,5 |
|
Product weight [g]
|
9 |
|
Housing material
|
TPE-U(PU) |
|
Protection category
|
IP65 |
|
Degree of contamination
|
3 |
|
Complies to standard
|
EN 60947-5-2 |
|
Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Switching status indicator
|
LED yellow |
|
Surge voltage strength [kV]
|
4,0 |
|
Weight
|
9 g / Pcs |
|
GTIN
|
4052568074463 |
|
Customs duty number
|
85365080 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SMT/SME-8 (english) |
|
Document
|
Data sheet |
