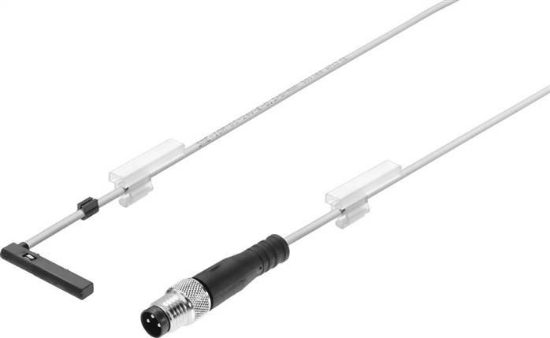

Design
|
For round nut |
|
Complies to standard
|
EN 60947-5-2 |
|
Permission
|
C-tick |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Special features
|
Oil resistant |
|
Material information
|
halogen free |
|
Measured parameter
|
Position |
|
Measurement principle
|
Reed magnetic |
|
ambient temperature [°C]
|
-40 to 70 |
|
Control output
|
Bipolar contact |
|
Switching element function
|
NO contact |
|
Repeatability control output in ± mm [mm]
|
0,1 |
|
Switch on time [ms]
|
<= 1,2 ms |
|
Switch off time [ms]
|
<= 1 ms |
|
Max. switching frequency [hz]
|
50 |
|
Max. output current [mA]
|
300 |
|
Max. output current in fastening sets [mA]
|
50 |
|
Max. switching capacity AC [Voltampere]
|
9 |
|
Max. switching capacity DC [W]
|
9 |
|
Max. switching capacity DC in fastening sets [W]
|
1,5 |
|
Max. switching capacity AC in fastening sets [Voltampere]
|
1,5 |
|
Voltage drop [V]
|
<= 1,5 V |
|
Short circuit resistance
|
no |
|
Overload resistant
|
Not available |
|
Rated operating voltage DC [V]
|
24 |
|
Operating voltage range AC [V]
|
5 to 30 |
|
Operating voltage range DC [V]
|
5 to 30 |
|
Reverse polarity protection
|
no |
|
Electrical connection 1, connection type
|
Cable with plug |
|
Electrical connection 1, connection technology
|
M8x1, A coded to EN 61076-2-104 |
|
Electrical connection 1, number of pins / wires
|
3 |
|
Connection outlet direction
|
horizontal |
|
Test conditions line
|
Bending radius strength to Festo standard |
|
Cable length [MTR]
|
0,3 |
|
Line properties
|
Cable track+robot |
|
Cable sleeve material
|
TPE-U(PUR) |
|
Fastening type
|
Insertable from above into the slot |
|
Max. tightening torque [Nm]
|
0,4 |
|
installation position
|
arbitrary |
|
Product weight [g]
|
6,7 |
|
Housing material
|
High-alloyed stainless steels |
|
Switching status indicator
|
LED yellow |
|
Ambient temperature for moving cable placements [°C]
|
-20 to 70 |
|
Protection category
|
IP65 |
|
Electrical connection 1, fastening type
|
Screw lock |
|
Weight
|
6,7 g / Pcs |
|
GTIN
|
4052568094706 |
|
Customs duty number
|
85365019 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SMT/SME-10 (english) , Data sheet |
