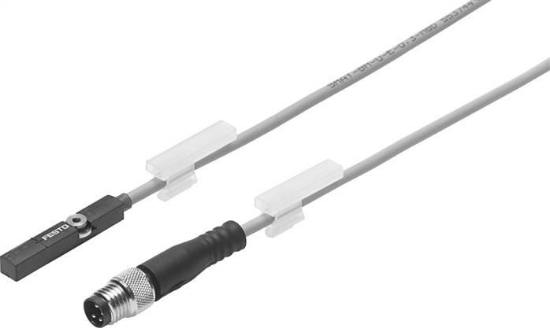

Design
|
For T-slot |
|
Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
KC-mark
|
KC-EMV |
|
Material information
|
halogen free |
|
Measurement principle
|
Magnetic |
|
Path measurement range [mm]
|
<= 40 mm |
|
ambient temperature [°C]
|
-25 to 75 |
|
Sampling interval type [ms]
|
2,80 |
|
Max. movement speed [m/s]
|
3 |
|
Resolution travel [mm]
|
<= 0,05 mm |
|
Repeatability in ± mm [mm]
|
0,200 |
|
Analogue output
|
0 - 10 V |
|
Linearity error typical in ± mm
|
± 0.2 mm on grippers |
|
Short circuit resistance
|
yes |
|
Overload resistant
|
Available |
|
Operating voltage range DC [V]
|
15 to 30 |
|
Reverse polarity protection
|
for all electrical connections |
|
Electrical connection 1, connection type
|
Cable with plug |
|
Electrical connection 1, connection technology
|
M8x1, A coded to EN 61076-2-104 |
|
Electrical connection 1, number of pins / wires
|
4 |
|
Electrical connection 1, fastening type
|
Screw lock |
|
Cable sleeve material
|
TPE-U(PUR) |
|
Product weight [g]
|
10,0 |
|
Housing material
|
PA6 reinforced |
|
Status display
|
LED red, green |
|
Protection category
|
IP65 |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
output signal
|
Analogue |
|
Test conditions line
|
Bending radius strength to Festo standard |
|
Cable length [MTR]
|
0,3 |
|
Line properties
|
Cable track+robot |
|
Fastening type
|
Insertable from above into the slot |
|
Ambient temperature for moving cable placements [°C]
|
-5 to 70 |
|
Weight
|
10,0 g / Pcs |
|
GTIN
|
4052568197711 |
|
Customs duty number
|
90318020 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SMAT-8M (english) , Data sheet |
