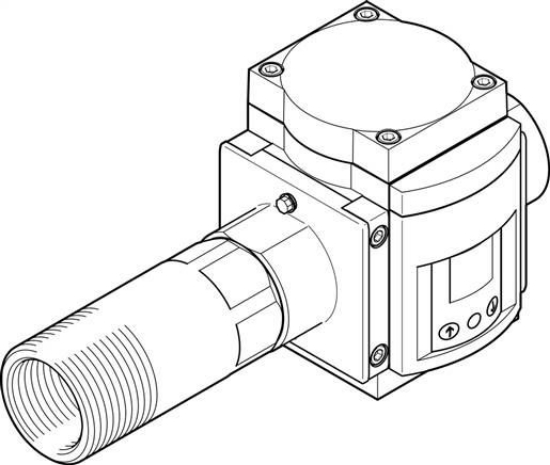

Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
acc. to EU-EMV Directive |
|
KC-mark
|
KC-EMV |
|
Certified awarding point
|
UL E322346 |
|
Material information
|
RoHs compliant |
|
Measured parameter
|
flow |
|
Flow direction
|
Uni-directional |
|
Measurement principle
|
Thermic |
|
Flow measurement range starting value [l/min]
|
150 |
|
Flow measurement range end value [l/min]
|
15.000 |
|
Operating pressure [bar]
|
0 to 16 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Medium temperature [°C]
|
0 to 50 |
|
ambient temperature [°C]
|
0 to 50 |
|
Nominal temperature [°C]
|
23 |
|
Accuracy flow value
|
± (3% o.m.v. + 0,3% FS) |
|
Repeatability null point in ± %FS []
|
0,2 |
|
Repeatability clamp in ± %FS []
|
0,8 |
|
Temperature coefficient clamp in ± %FS/K
|
type 0,1%FS/K |
|
Pressure dependency clamp in ± %FS/bar []
|
0,5 |
|
Control output
|
2x PNP or 2x NPN adjustable |
|
Switch function
|
Window comparator or threshold comparator, adjustable |
|
Switching element function
|
NC contact |
|
Max. output current [mA]
|
100 |
|
Analogue output
|
0 - 10 V |
|
Flow characteristic curve starting value [l/min]
|
0 |
|
Flow characteristic curve end value [l/min]
|
15.000 |
|
Output characteristic curve starting value [mA]
|
0 |
|
Output characteristic curve end value [mA]
|
10 |
|
Short circuit resistance
|
yes |
|
Operating voltage range DC [V]
|
15 to 30 |
|
Reverse polarity protection
|
for all electrical connections |
|
electrical connection:
|
M12x1 |
|
Fastening type
|
pipe installation |
|
installation position
|
Horizontal |
|
Pneumatic connection
|
G1 1/2 |
|
Product weight [g]
|
2.750 |
|
Housing material
|
Aluminium die casting |
|
Display type
|
Illuminating LCD blue |
|
Presentable unit(s)
|
l |
|
Protection category
|
IP65 |
|
Pressure drop [mbar]
|
< 100 mbar |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Min. load resistance voltage output [Kilo-Ohm]
|
10 |
|
Weight
|
2.750 g / Pcs |
|
GTIN
|
4052568219888 |
|
Customs duty number
|
90262020 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SFAM (english) , Data sheet |
