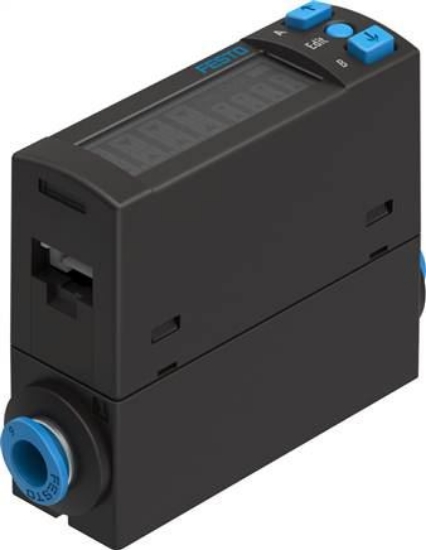

Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
acc. to EU-EMV Directive |
|
KC-mark
|
KC-EMV |
|
Material information
|
RoHs compliant |
|
Measured parameter
|
Mass flow |
|
Flow direction
|
Uni-directional |
|
Measurement principle
|
Thermic |
|
Measurement process
|
Heat Transfer |
|
Flow measurement range starting value [l/min]
|
0,020 |
|
Flow measurement range end value [l/min]
|
1,0 |
|
Operating pressure [bar]
|
-0.9 to 10 |
|
Operating medium
|
Druckluft nach ISO 8573-1:2010 [6:4:4] |
|
Medium temperature [°C]
|
0 to 50 |
|
ambient temperature [°C]
|
0 to 50 |
|
Nominal temperature [°C]
|
23 |
|
Accuracy flow value
|
± (2% o.m.v. + 1% FS) |
|
Repeatability null point in ± %FS []
|
0,2 |
|
Repeatability clamp in ± %FS []
|
0,8 |
|
Temperature coefficient clamp in ± %FS/K
|
type 0,15%FS/K |
|
Pressure dependency clamp in ± %FS/bar []
|
1 |
|
Control output
|
2 x PNP or 2 x NPN switchable |
|
Switch function
|
Window comparator |
|
Switching element function
|
Opener/closer switchable |
|
Max. output current [mA]
|
100 |
|
Analogue output
|
0 - 10 V |
|
Flow characteristic curve starting value [l/min]
|
0 |
|
Flow characteristic curve end value [l/min]
|
1,0 |
|
Max. load resistance current output [Ohm]
|
500 |
|
Min. load resistance voltage output [Kilo-Ohm]
|
20 |
|
Short circuit resistance
|
yes |
|
Overload resistant
|
Available |
|
Report
|
IO-Link |
|
IO-Link, report
|
Device V 1.1 |
|
IO-Link, profile
|
Smart sensor profile |
|
IO-Link, function classes
|
Teach channel |
|
IO-Link, communication mode
|
COM2 (38.4 kBaud) |
|
IO-Link, SIO mode support
|
yes |
|
IO-Link, port type
|
A |
|
IO-Link, process data width IN
|
3 Bytes |
|
IO-Link, process data contents IN
|
1 bit BDC (Volume monitoring) |
|
IO-Link, service data unit IN
|
32 bit PDV (volume measurement) |
|
IO-Link, minimum cycle time
|
4 ms |
|
IO-Link, data memory needed [Byte]
|
< 0,5 kB |
|
Operating voltage range DC [V]
|
22 to 26 |
|
Empty run current [mA]
|
<= 25 mA |
|
Reverse polarity protection
|
for all electrical connections |
|
Electrical connection 1, connection type
|
Plug |
|
Electrical connection 1, connection technology
|
Wiring diagram L1J |
|
Electrical connection 1, number of pins / wires
|
4 |
|
Fastening type
|
With Accessories |
|
installation position
|
arbitrary |
|
Pneumatic connection
|
For hose exterior diameter 4 mm |
|
Pneumatic connection, connection outlet
|
straight |
|
Product weight [g]
|
60 |
|
Housing material
|
PA reinforced |
|
From medium contacting materials
|
NBR |
|
Display type
|
Illuminating LCD Multiple |
|
Presentable unit(s)
|
scft |
|
Setting options
|
IO-Link |
|
Tamper-proof fuse
|
IO-Link |
|
Protection category
|
IP40 |
|
Pressure drop [mbar]
|
< 5 mbar |
|
Protection class
|
III |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Weight
|
60 g / Pcs |
|
GTIN
|
4052568295479 |
|
Customs duty number
|
90262020 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SFAH (english) |
|
Document
|
Data sheet |
