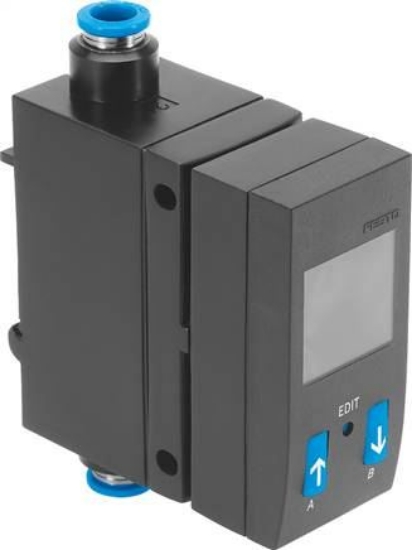

Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
acc. to EU-EMV Directive |
|
Certified awarding point
|
UL E322346 |
|
Material information
|
RoHs compliant |
|
Measured parameter
|
flow |
|
Flow direction
|
P1 -> P2 |
|
Measurement principle
|
Thermic |
|
Flow measurement range starting value [l/min]
|
0,1 |
|
Flow measurement range end value [l/min]
|
10 |
|
Operating pressure [bar]
|
0 to 10 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [6:4:4] |
|
Medium temperature [°C]
|
0 to 50 |
|
ambient temperature [°C]
|
0 to 50 |
|
Nominal temperature [°C]
|
23 |
|
Accuracy flow value
|
± (3% o.m.v. + 0,3% FS) |
|
Repeatability null point in ± %FS []
|
0,2 |
|
Repeatability clamp in ± %FS []
|
0,8 |
|
Control output
|
2 x PNP or 2 x NPN switchable |
|
Switch function
|
Window comparator |
|
Switching element function
|
NC contact |
|
Max. output current [mA]
|
<= 100 mA |
|
Analogue output
|
4 - 20 mA |
|
Flow characteristic curve starting value [l/min]
|
0 |
|
Flow characteristic curve end value [l/min]
|
10 |
|
Output characteristic curve starting value [mA]
|
4 |
|
Output characteristic curve end value [mA]
|
20 |
|
Max. load resistance current output [Ohm]
|
500 |
|
Short circuit resistance
|
yes |
|
Operating voltage range DC [V]
|
15 to 30 |
|
Reverse polarity protection
|
for all electrical connections |
|
electrical connection:
|
M12x1 |
|
Plug assignment to standard
|
EN 60947-5-2 |
|
Fastening type
|
With throughway bores |
|
installation position
|
arbitrary |
|
Pneumatic connection
|
QS-6 |
|
Product weight [g]
|
600 |
|
Housing material
|
PA reinforced |
|
Display type
|
Illuminating LCD blue |
|
Presentable unit(s)
|
l |
|
Protection category
|
IP65 |
|
Pressure drop [mbar]
|
< 100 mbar |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Weight
|
600 g / Pcs |
|
GTIN
|
4052568212353 |
|
Customs duty number
|
90262020 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SFAB (english) , Data sheet |
