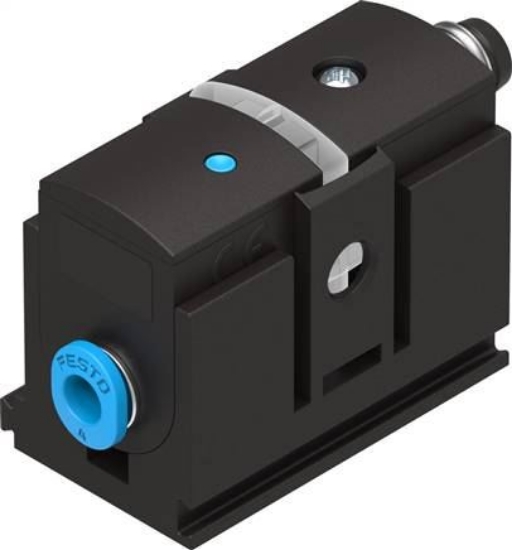

Permission
|
RCM mark |
|
CE certificate (see declaration of conformity)
|
acc. to EU-EMV Directive |
|
KC-mark
|
KC-EMV |
|
Material information
|
RoHs compliant |
|
Measured parameter
|
Relative pressure |
|
Measurement process
|
Piezoresistive pressure sensor |
|
Pressure measurement range starting value [bar]
|
0 |
|
Pressure measurement range end value [bar]
|
10 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible |
|
Medium temperature [°C]
|
0 to 50 |
|
ambient temperature [°C]
|
0 to 50 |
|
Repeatability in ± %FS []
|
0,3 |
|
Temperature coefficient in ± %FS/K []
|
0,05 |
|
Control output
|
PNP |
|
Switch function
|
Threshold value with fixed hysteresis |
|
Switching element function
|
NO contact |
|
Max. output current [mA]
|
100 |
|
Short circuit resistance
|
yes |
|
Operating voltage range DC [V]
|
15 to 30 |
|
Reverse polarity protection
|
for all electrical connections |
|
electrical connection:
|
M8x1 |
|
Fastening type
|
With Accessories |
|
installation position
|
arbitrary |
|
Pneumatic connection
|
QS-4 |
|
Product weight [g]
|
19 |
|
Housing material
|
PA |
|
Switching status indicator
|
LED yellow |
|
Settings range threshold value [%]
|
0 to 100 |
|
Protection category
|
IP40 |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Weight
|
19 g / Pcs |
|
GTIN
|
4052568162580 |
|
Customs duty number
|
90262020 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SDE5 (english) , Data sheet |
