Suitable:

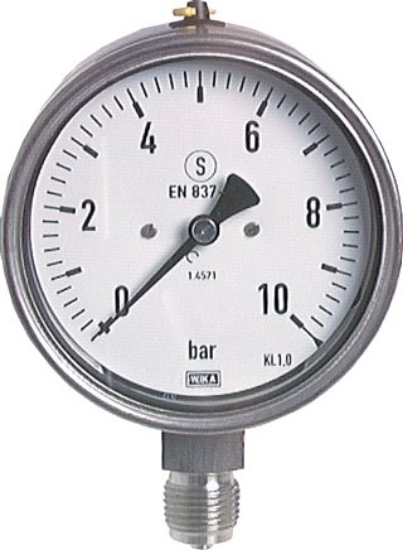

Pressure gauge for extra safety in line with S 3 EN 837-1 (DIN 16006) with blow-out back and unbreakable baffle wall.

Materials:

Housing: 1.4301, measuring system and connector: 1.4404, window: Laminated safety glass

Connection thread:

G 1/2" *

Class:

1,0

Temperature range:

Environment: -40°C to +60°C, measured material, -40°C to +200°C

Protection class:

IP 65

Note:

WIKA Type 232.30

Optional:

ISO calibration certificate (factory calibration certificate) acc. to DIN EN ISO 17025, VDI and data sheet DAkkS-DKD-MB-3 with 5 measurement points
