size
|
Standard |
|
Nominal width [mm]
|
1,6 |
|
Permitted hose type
|
PAN- |
|
Hose plug-in depth [mm]
|
12,5 |
|
installation position
|
arbitrary |
|
Packing size
|
1 |
|
Construction set up
|
Push-pull principle |
|
Operating pressure complete temperature range [bar]
|
-0.95 to 6 |
|
Temperature depending operating pressure [bar]
|
-0.95 to 14 |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:-:-] |
|
Information about operating and control medium
|
Oiled operation possible |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
ambient temperature [°C]
|
-10 to 80 |
|
Maritime classification
|
see Certificate |
|
Product weight [g]
|
9,5 |
|

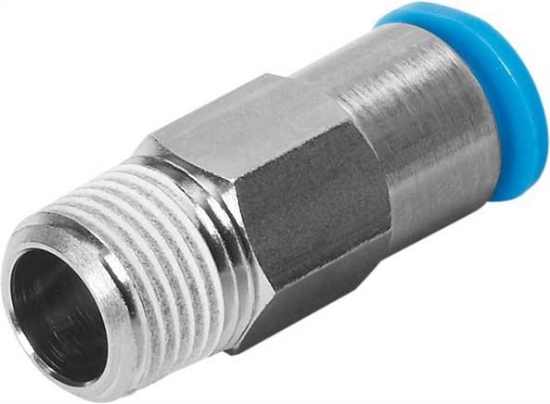

Pneumatic connection 1
|
Male thread R1/8 |
|
Pneumatic connection 2
|
For hose exterior diameter 4 mm |
|
Sleeve colour
|
#009FE3 |
|
Material information
|
RoHs compliant |
|
Housing material
|
brass |
|
Sleeve material
|
POM |
|
Tube seal, hose seal material
|
NBR |
|
Hose clamping segment material
|
High-alloyed stainless steels |
|
Seal type on stud
|
coating |
|
Max. tightening torque [Nm]
|
7,0 |
|
Weight
|
9,5 g / Pcs |
|
GTIN
|
4052568034528 |
|
Customs duty number
|
84813099 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Self-closing/rotary push-in fittings QS (english) |
|
Document
|
Data sheet |
