size
|
64 |
|
Model series
|
P |
|
Actuation fuse
|
Regulierschraube mit Konterung |
|
installation position
|
vertical ± 5° |
|
Filter porosity [Mikrometer]
|
5 |
|
Condensate drain
|
Manually rotating |
|

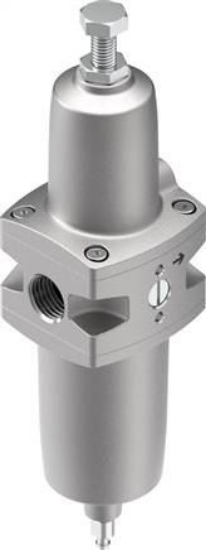

Construction set up
|
Filter regulator without pressure gauge |
|
Complies to standard
|
NACE MR0175/ISO 15156 (Gehäuse und Schale) |
|
Max. condensate amount [ml]
|
30 |
|
Controller function
|
mit Sekundärentlüftung |
|
pressure display
|
G1/4 prepared |
|
Operating pressure [bar]
|
1 to 20 |
|
Pressure regulation range [bar]
|
0.5 to 7 |
|
Max. pressure hysteresis [bar]
|
0,2 |
|
Max. normal flow [l/min]
|
2.920 |
|
Normal nominal flow [l/min]
|
2.150 |
|
Operating medium
|
Inert gases |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Bearing temperature [°C]
|
-60 bis 80 |
|
Air purity class at the output
|
Compressed air to ISO 8573-1:2010 [6:4:4] |
|
Medium temperature [°C]
|
-60 bis 80 |
|
ambient temperature [°C]
|
-60 bis 80 |
|
Product weight [g]
|
1.910 |
|
Fastening type
|
Leitungseinbau |
|
Pressure gauge connection
|
G1/4 |
|
Pneumatic connection 1
|
NPT1/2-14 |
|
Pneumatic connection 2
|
NPT1/2-14 |
|
Werkstoff Ablassschraube
|
High-alloyed stainless steels |
|
Werkstoffnummer Ablassschraube
|
1.4404/316L |
|
Filter carrier material
|
Cast stainless steel |
|
Werkstoffnummer Filterträger
|
1.4409/CF3M(316L) |
|
Material information
|
LABS containing materials included |
|
Mounting bracket material
|
High-alloyed stainless steels |
|
Seals material
|
CR |
|
Spring material
|
High-alloyed stainless steels |
|
Filter material
|
High-alloyed stainless steels |
|
Werkstoffnummer Filter
|
1.4404/316L |
|
Housing material
|
Cast stainless steel |
|
Material number housing
|
1.4409/CF3M(316L) |
|
Regulation screw material
|
High-alloyed stainless steels |
|
Clamps material
|
Cast stainless steel |
|
Werkstoffnummer Schale
|
1.4409/CF3M (316L) |
|
Weight
|
1.910 g / Pcs |
|
Customs duty number
|
84811005 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: PCRP (english) , Data sheet |
