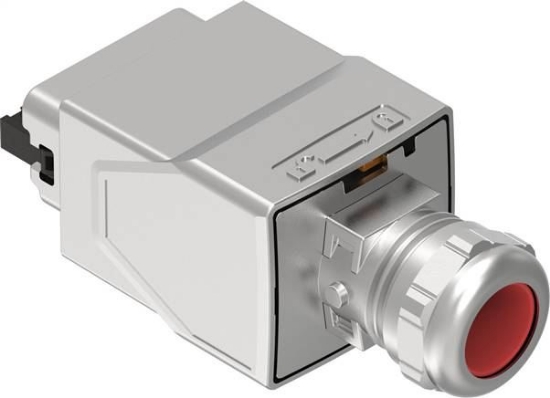

Operating voltage range DC [V]
|
0 to 24 |
|
Current carrying capacity at 40°C [A]
|
16,0 |
|
Surge voltage strength [kV]
|
4,0 |
|
Protection category
|
IP65 |
|
ambient temperature [°C]
|
-40 to 85 |
|
Material information
|
RoHs compliant |
|
Degree of contamination
|
3 |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Housing material
|
Zinc pressure cast, nickel-plated |
|
Plug contacts material
|
Copper allow, nickel and gold plated |
|
Connection frequency
|
100 |
|
Cable output
|
straight |
|
Product weight [g]
|
109,0 |
|
Electrical connection 1, design
|
Angular |
|
Electrical connection 1, connection type
|
socket / container / …. |
|
Electrical connection 1, connection technology
|
Wiring diagram PP, coding on Pin 2 and 5 |
|
Electrical connection 1, number of pins / wires
|
5 |
|
Electrical connection 1, fastening type
|
Push-Pull with lock against accidental pulling |
|
Electrical connection 2, connection technology
|
Spring tension clamp |
|
Cable diameter [mm]
|
9 to 13 |
|
Conductor - nominal cross-section [mm²]
|
0.75 to 2.5 |
|
Information about protection category
|
In mounted condition |
|
Housing colour
|
#EDEDED |
|
Report
|
Profinet |
|
Additional functions
|
meets requirements acc. to AIDA |
|
Electrical connection 1, occupied pin / wire
|
5 |
|
Cable screwing
|
Pg13.5 hexagonal SW22 |
|
Conductor nominal cross-section (AWG)
|
AWG18 - 13 |
|
Bearing temperature [°C]
|
-40 to 85 |
|
Fire inspection
|
UL94 V-0 |
|
Seals material
|
NBR |
|
Weight
|
109,0 g / Pcs |
|
GTIN
|
4052568293758 |
|
Customs duty number
|
85366990 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: NECU (english) , Data sheet |
