Based on standard
|
EN 61076-2-101 |
|
Electrical connection 1
|

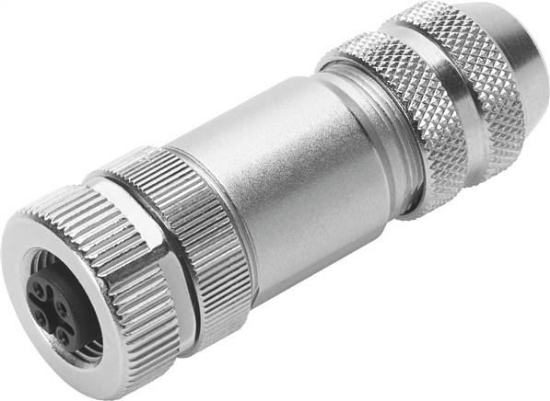

Straight socket, M12x1, 5-pin B-coded, Shieldable |
|
Plug coding
|
B |
|
Electrical connection 2
|
Screw clamp, Shieldable |
|
Operating voltage range DC [V]
|
0 to 125 |
|
Operating voltage range AC [V]
|
0 to 125 |
|
Current carrying capacity at 40°C [A]
|
4,0 |
|
Surge voltage strength [kV]
|
1,5 |
|
Transfer properties
|
DIN EN 50173 / CAT 5 |
|
Permitted cable diameter [mm]
|
6 to 8 |
|
Connection cross-section [mm²]
|
0.14 to 0.75 |
|
Protection category
|
IP67 |
|
ambient temperature [°C]
|
-25 to 85 |
|
CE certificate (see declaration of conformity)
|
to EU low voltage directive |
|
Material information
|
RoHs compliant |
|
Degree of contamination
|
3 |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Housing material
|
nickel-plated |
|
Plug contacts material
|
brass |
|
Weight
|
48 g / Pcs |
|
GTIN
|
4052568104856 |
|
Customs duty number
|
85366990 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: NECU (english) , Data sheet |
