Based on standard
|
EN 61984 |
|
Electrical connection 1
|

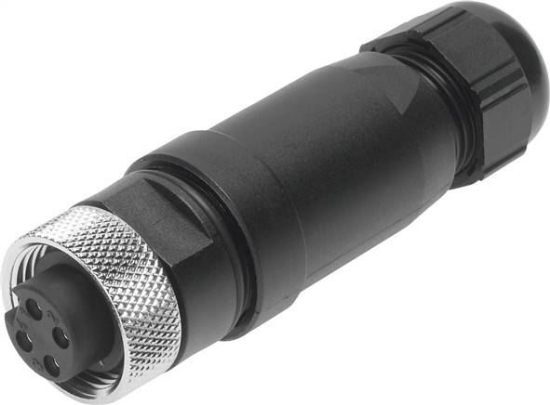

Straight socket, 7/8", 4-pin |
|
Plug coding
|
ODVAAutoSIG |
|
Electrical connection 2
|
Screw clamp |
|
Operating voltage range DC [V]
|
0 to 250 |
|
Operating voltage range AC [V]
|
0 to 250 |
|
Surge voltage strength [kV]
|
2,5 |
|
Permitted cable diameter [mm]
|
6 to 12 |
|
Connection cross-section [mm²]
|
<= 1,5 mm2 |
|
Protection category
|
IP67 |
|
ambient temperature [°C]
|
-25 to 80 |
|
CE certificate (see declaration of conformity)
|
to EU low voltage directive |
|
Material information
|
Copper and PTFE-free |
|
Degree of contamination
|
3 |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Housing material
|
PA |
|
Plug contacts material
|
Copper allow |
|
Housing colour
|
#000000 |
|
Seals material
|
FKM |
|
Permission
|
c CSA us (OL) |
|
Current carrying capacity [A]
|
10 |
|
Locking nut material
|
nickel-plated |
|
Weight
|
60 g / Pcs |
|
GTIN
|
4052568091248 |
|
Customs duty number
|
85366990 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: NECU (english) , Data sheet |
