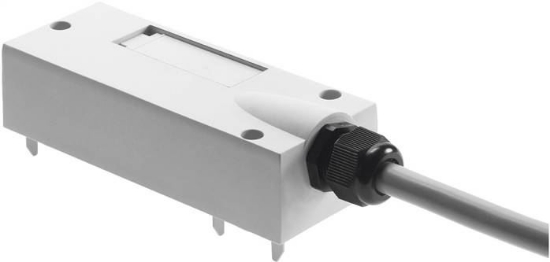

Line designation
|
With Sign carrier |
|
Electrical connection 1, function
|
Field device screen |
|
Electrical connection 1, design
|
Angular |
|
Electrical connection 1, connection type
|
socket / container / …. |
|
Electrical connection 1, cable output
|
Angled |
|
Electrical connection 1, connection technology
|
Sub-D |
|
Electrical connection 1, number of pins / wires
|
37 |
|
Electrical connection 1, occupied pin / wire
|
37 |
|
Electrical connection 1, fastening type
|
3x M4 screws |
|
Electrical connection 2, function
|
Control screen |
|
Electrical connection 2, connection type
|
cable |
|
Electrical connection 2, connection technology
|
Open end |
|
Electrical connection 2, number of pins / wires
|
37 |
|
Operating voltage range DC [V]
|
0 to 30 |
|
Current carrying capacity at 40°C [A]
|
2,00 |
|
Cable length [MTR]
|
2,5 |
|
Line properties
|
Standard |
|
Bending radius, permanent cable placement [mm]
|
>= 51 mm |
|
Bending radius, moving cable placement [mm]
|
>= 128 mm |
|
Cable diameter [mm]
|
12,8 |
|
Cable set up
|
37x0,34 |
|
Conductor - nominal cross-section [mm²]
|
0,34 |
|
Protection category
|
IP65 |
|
Information about protection category
|
In mounted condition |
|
ambient temperature [°C]
|
-5 to 50 |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Cable sleeve material
|
TPE-U(PUR) |
|
Cable shield colour
|
#C6C6C6 |
|
Housing material
|
PA |
|
Insulation sleeve material
|
PVC |
|
Field of application
|
Only for multi-pin connection distributor VTSA/VTSA-F |
|
Complies to standard
|
DIN 47100 |
|
Electrical connection 2, occupied pin / wire
|
37 |
|
Surge voltage strength [kV]
|
1,0 |
|
Test conditions line
|
Test conditions on request |
|
Weight
|
900 g / Pcs |
|
GTIN
|
4052568177317 |
|
Customs duty number
|
85444290 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: NEBV-S1 (english) , Data sheet |
