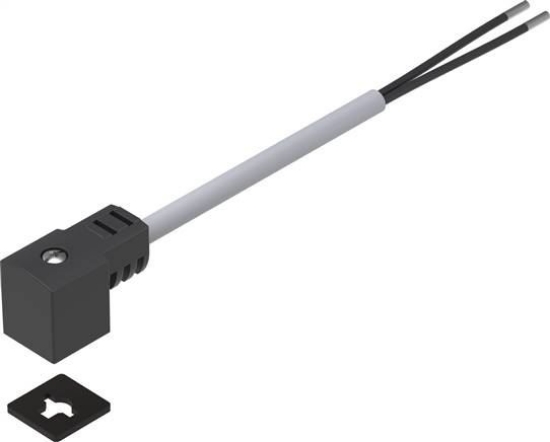

Line designation
|
Without sign holder |
|
Product weight [g]
|
440 |
|
Electrical connection 1, function
|
Field device screen |
|
Electrical connection 1, design
|
Angular |
|
Electrical connection 1, connection type
|
Dose, schmal |
|
Electrical connection 1, cable output
|
Angled |
|
Electrical connection 1, connection technology
|
Wiring diagram Form C acc. to EN 175301-803 |
|
Electrical connection 1, number of pins / wires
|
4 |
|
Electrical connection 1, occupied pin / wire
|
2 |
|
Electrical connection 1, fastening type
|
on solenoid valve with central screw M2,5 |
|
Electrical connection 2, function
|
Control screen |
|
Electrical connection 2, connection type
|
cable |
|
Electrical connection 2, connection technology
|
Open end |
|
Electrical connection 2, number of pins / wires
|
2 |
|
Electrical connection 2, occupied pin / wire
|
2 |
|
Operating voltage range DC [V]
|
20.4 to 26.4 |
|
Nominal operating voltage DC [V]
|
24 |
|
Current carrying capacity at 40°C [A]
|
6 |
|
Surge voltage strength [kV]
|
2,4 |
|
Protection line connection
|
Not available |
|
Cable length [MTR]
|
10,0 |
|
Line properties
|
Standard |
|
Test conditions line
|
Test conditions on request |
|
Cable diameter [mm]
|
5,2 |
|
Tolerance cable diameter
|
± 0,1 mm |
|
Cable set up
|
2x0,75 |
|
Protection category
|
IP65 |
|
Information about protection category
|
In mounted condition |
|
ambient temperature [°C]
|
-20 to 70 |
|
Ambient temperature for moving cable placements [°C]
|
-5 to 70 |
|
Material information
|
RoHs compliant |
|
Degree of contamination
|
3 |
|
Corrosion resistant class KBK
|
3 - severe corrosion stress |
|
Cable sleeve material
|
PVC |
|
Cable shield colour
|
#C6C6C6 |
|
Housing material
|
TPE-U(PU) |
|
Housing colour
|
#000000 |
|
Insulation sleeve material
|
PVC |
|
Additional functions
|
protection circuit |
|
Conductor - nominal cross-section [mm²]
|
0,75 |
|
Seals material
|
HNBR |
|
Plug contacts material
|
Material of coupler tin plated |
|
Bending radius, moving cable placement [mm]
|
>= 52 mm |
|
Signal condition display
|
LED yellow |
|
Connection frequency
|
50 |
|
Elektrischer Anschluss 1, Hinweis zum Kabelabgang
|
Can be moved by 180° |
|
Reverse polarity protection
|
Bipolar |
|
Screws material
|
Stainless steel |
|
Weight
|
440 g / Pcs |
|
Customs duty number
|
85444290 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: NEBV-C1SW (english) , Data sheet |
