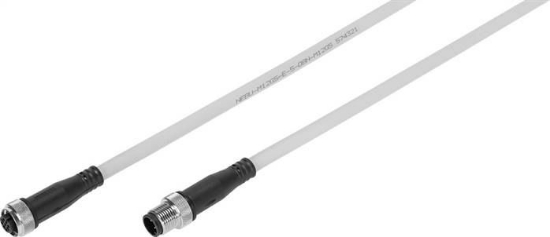

Complies to standard
|
EN 61076-2-101 |
|
Operating voltage range DC [V]
|
0 to 60 |
|
Operating voltage range AC [V]
|
0 to 60 |
|
Current carrying capacity at 40°C [A]
|
4,0 |
|
Surge voltage strength [kV]
|
1,5 |
|
Cable length [MTR]
|
10,0 |
|
Line properties
|
Cable track capable |
|
Test conditions line
|
Bending radius strength to Festo standard |
|
Cable diameter [mm]
|
7,0 |
|
Cable set up
|
5x1 |
|
Conductor - nominal cross-section [mm²]
|
1,00 |
|
Protection category
|
IP65 |
|
ambient temperature [°C]
|
-25 to 80 |
|
Ambient temperature for moving cable placements [°C]
|
-5 to 80 |
|
Material information
|
halogen free |
|
Degree of contamination
|
3 |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Cable sleeve material
|
TPE-U(PUR) |
|
Cable shield colour
|
#C6C6C6 |
|
Housing material
|
TPE-U(PUR) |
|
Housing colour
|
#000000 |
|
Insulation sleeve material
|
PP |
|
CE certificate (see declaration of conformity)
|
to EU low voltage directive |
|
Line designation
|
Without sign holder |
|
Electrical connection 1, function
|
Field device screen |
|
Electrical connection 1, design
|
round |
|
Electrical connection 1, connection type
|
socket / container / …. |
|
Electrical connection 1, cable output
|
straight |
|
Electrical connection 1, connection technology
|
M12x1, A coded to EN 61076-2-101 |
|
Electrical connection 1, number of pins / wires
|
5 |
|
Electrical connection 1, occupied pin / wire
|
5 |
|
Electrical connection 1, fastening type
|
Screw lock |
|
Electrical connection 2, function
|
Control screen |
|
Electrical connection 2, connection type
|
Plug |
|
Electrical connection 2, connection technology
|
M12x1, A coded to EN 61076-2-101 |
|
Electrical connection 2, number of pins / wires
|
5 |
|
Electrical connection 2, occupied pin / wire
|
5 |
|
Tolerance cable diameter
|
± 0,1 mm |
|
Information about protection category
|
In mounted condition |
|
Special features
|
Oil resistant |
|
Screw lock material
|
brass, nickel-plated |
|
Product weight [g]
|
295 |
|
Electrical connection 2, design
|
round |
|
Electrical connection 2, cable output
|
straight |
|
Electrical connection 2, fastening type
|
Screw lock |
|
Weight
|
295 g / Pcs |
|
GTIN
|
4052568222772 |
|
Customs duty number
|
85444290 |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Connecting cables, universal (english) , Data sheet |
