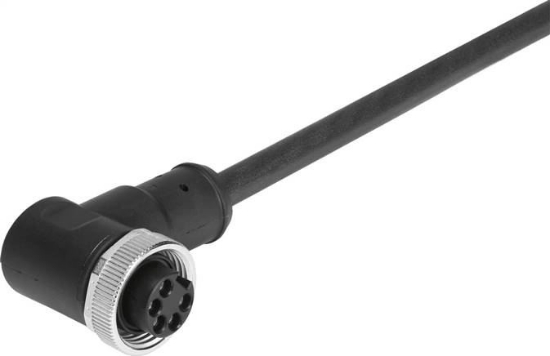

Line designation
|
Without sign holder |
|
Product weight [g]
|
300 |
|
Electrical connection 1, function
|
Field device screen |
|
Electrical connection 1, design
|
round |
|
Electrical connection 1, connection type
|
socket / container / …. |
|
Electrical connection 1, cable output
|
Angled |
|
Electrical connection 1, connection technology
|
G7/8 coded acc. to NFPA/T3.5.29 R1-2007 |
|
Electrical connection 1, number of pins / wires
|
5 |
|
Electrical connection 1, occupied pin / wire
|
5 |
|
Electrical connection 1, fastening type
|
Screw lock |
|
Electrical connection 2, function
|
Control screen |
|
Electrical connection 2, connection type
|
cable |
|
Electrical connection 2, connection technology
|
Open end |
|
Electrical connection 2, number of pins / wires
|
5 |
|
Electrical connection 2, occupied pin / wire
|
5 |
|
Operating voltage range DC [V]
|
0 to 300 |
|
Operating voltage range AC [V]
|
0 to 300 |
|
Current carrying capacity at 40°C [A]
|
9 |
|
Surge voltage strength [kV]
|
4,0 |
|
Cable length [MTR]
|
2,0 |
|
Line properties
|
Standard |
|
Bending radius, permanent cable placement [mm]
|
>= 65 mm |
|
Cable diameter [mm]
|
8,7 |
|
Tolerance cable diameter
|
± 0,2 mm |
|
Cable set up
|
5x1.5 |
|
Conductor - nominal cross-section [mm²]
|
1,50 |
|
Protection category
|
IP65 |
|
Information about protection category
|
In mounted condition |
|
ambient temperature [°C]
|
-20 to 80 |
|
Material information
|
RoHs compliant |
|
Degree of contamination
|
3 |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Cable sleeve material
|
TPE-U(PUR) |
|
Cable shield colour
|
#000000 |
|
Housing material
|
TPE-U(PUR) |
|
Plug contacts material
|
brass, Gold plated |
|
Test conditions line
|
Test conditions on request |
|
Housing colour
|
#000000 |
|
Screw lock material
|
brass, nickel-plated |
|
Based on standard
|
NFPA/T3.5.29 R1-2007 |
|
Connection frequency
|
100 |
|
CE certificate (see declaration of conformity)
|
to EU low voltage directive |
|
Weight
|
300 g / Pcs |
|
GTIN
|
4052568102913 |
|
Customs duty number
|
85366990 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Connecting cables, universal (english) , Data sheet |
