Line designation
|
With Sign carrier |
|
installation position
|
arbitrary |
|
Product weight [g]
|
945 |
|

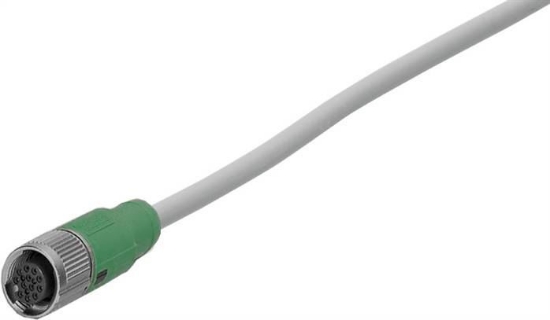

Electrical connection 1
|
Straight socket, M12x1, 12-pin A-coded |
|
Electrical connection 2
|
Open end, 12-wire |
|
Operating voltage range DC [V]
|
0 to 30 |
|
Nominal operating voltage DC [V]
|
30 |
|
Current carrying capacity at 40°C [A]
|
1,5 |
|
Cable length [MTR]
|
10,0 |
|
Line properties
|
Basic |
|
Test conditions line
|
Bending radius strength to Festo standard |
|
Min. cable bending radius [mm]
|
85 |
|
Cable diameter [mm]
|
8,50 |
|
Tolerance cable diameter
|
± 0,2 mm |
|
Cable set up
|
12x0,14 |
|
Connection cross-section [mm²]
|
0,14 |
|
Colour code wire insulation
|
Pin 2 = blue |
|
Protection category
|
IP67 |
|
ambient temperature [°C]
|
-30 to +80 |
|
Ambient temperature for moving cable placements [°C]
|
-25 to 80 |
|
Material information
|
RoHs compliant |
|
Degree of contamination
|
3 |
|
Corrosion resistant class KBK
|
0 - No corrosion stressing |
|
Cable sleeve material
|
TPE-U(PUR) |
|
Cable shield colour
|
#000000 |
|
Locking nut material
|
Zinc pressure cast |
|
Seals material
|
NBR |
|
Plug contacts material
|
brass |
|
Weight
|
945 g / Pcs |
|
Customs duty number
|
85444290 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: SBSI (english) , Data sheet |
