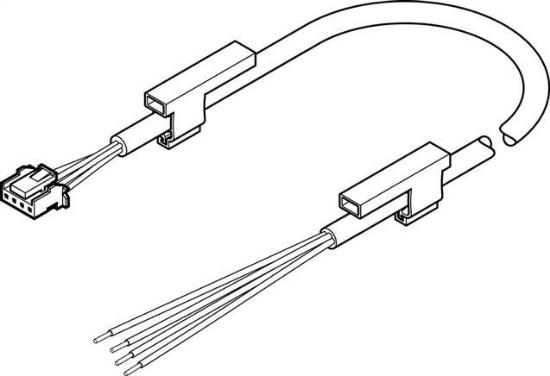

Electrical connection 1
|
Socket, square shape L1, 4 pin |
|
Electrical connection 2
|
Open end, 4-wire |
|
Operating voltage range DC [V]
|
0 to 30 |
|
Current carrying capacity at 40°C [A]
|
1,0 |
|
Cable length [MTR]
|
5,0 |
|
Line properties
|
Standard |
|
Test conditions line
|
Bending radius strength to Festo standard |
|
Cable diameter [mm]
|
4,10 |
|
Cable set up
|
4x0.14 |
|
Colour code wire insulation
|
blue |
|
Protection category
|
IP40 |
|
ambient temperature [°C]
|
-20 to 60 |
|
Ambient temperature for moving cable placements [°C]
|
-5 to 60 |
|
Material information
|
Copper and PTFE-free |
|
Degree of contamination
|
2 |
|
Corrosion resistant class KBK
|
4 - particularly severe corrosion stress |
|
Cable sleeve material
|
PVC |
|
Cable shield colour
|
#C6C6C6 |
|
Surge voltage strength [kV]
|
0,8 |
|
Conductor - nominal cross-section [mm²]
|
0,14 |
|
Housing material
|
PA |
|
Insulation sleeve material
|
PP |
|
Weight
|
120 g / Pcs |
|
GTIN
|
4052568058906 |
|
Customs duty number
|
85444290 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: NEBS (english) , Data sheet |
