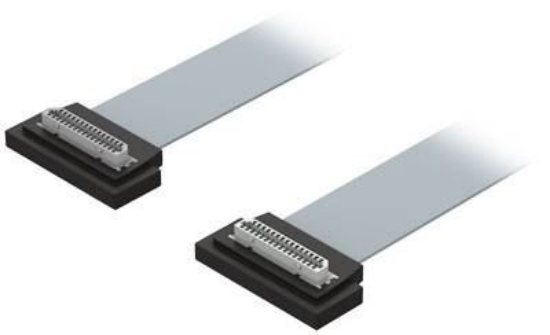

Line designation
|
Without sign holder |
|
Electrical connection 1, function
|
Field device screen |
|
Electrical connection 1, design
|
Angular |
|
Electrical connection 1, connection type
|
socket / container / …. |
|
Electrical connection 1, cable output
|
Angled |
|
Electrical connection 1, connection technology
|
Wiring diagram F1 |
|
Electrical connection 1, number of pins / wires
|
31 |
|
Electrical connection 1, occupied pin / wire
|
31 |
|
Electrical connection 2, function
|
Control screen |
|
Electrical connection 2, connection type
|
socket / container / …. |
|
Electrical connection 2, connection technology
|
Wiring diagram F1 |
|
Electrical connection 2, number of pins / wires
|
31 |
|
Electrical connection 2, occupied pin / wire
|
31 |
|
Operating voltage range DC [V]
|
24 |
|
Nominal operating voltage DC [V]
|
50 |
|
Cable length [MTR]
|
0,50 |
|
Line properties
|
für dynamische Anwendungen |
|
Bending radius, moving cable placement [mm]
|
>= 25 mm |
|
Cable set up
|
31 Adern, Abstand 0,5 mm |
|
Conductor - nominal cross-section [mm²]
|
0,0105 |
|
Protection category
|
IP20 |
|
Information about protection category
|
In mounted condition |
|
ambient temperature [°C]
|
-20 to 75 |
|
Ambient temperature for moving cable placements [°C]
|
-5 to 70 |
|
Material information
|
RoHs compliant |
|
Cable sleeve material
|
PET |
|
Cable shield colour
|
#C6C6C6 |
|
Corrosion resistant class KBK
|
1 - low corrosion stress |
|
Electrical connection 2, design
|
Angular |
|
Electrical connection 2, cable output
|
Angled |
|
Degree of contamination
|
1 |
|
Current carrying capacity at 40°C [A]
|
0,5 |
|
Surge voltage strength [kV]
|
0,25 |
|
Bending radius, permanent cable placement [mm]
|
0 |
|
Test conditions line
|
Test conditions on request |
|
Housing material
|
PA |
|
Housing colour
|
#000000 |
|
Product weight [g]
|
27 |
|
Connection frequency
|
30 |
|
Electrical connection 1, fastening type
|
Ratcheting lock |
|
Bearing temperature [°C]
|
-25 to 55 |
|
Plug contacts material
|
Material of coupler tin plated |
|
Electrical connection 2, fastening type
|
Ratcheting lock |
|
Hinweis zu Biegeradius, feste Kabelverlegung
|
einmalig knickbar |
|
Weight
|
27 g / Pcs |
|
Customs duty number
|
85444290 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: EHMD (english) , Data sheet |
