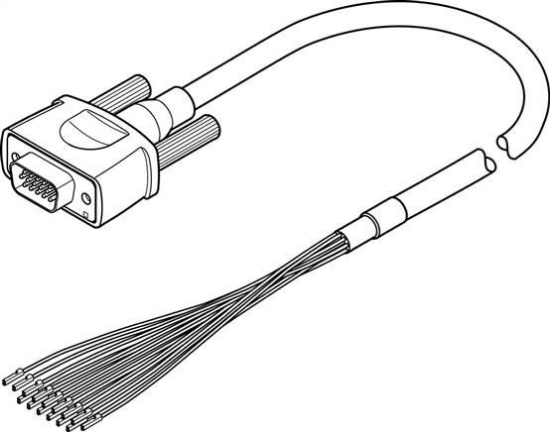

Cable length [MTR]
|
1,00 |
|
Material information
|
RoHs compliant |
|
Complies to standard
|
DIN 47100 |
|
Line designation
|
Without sign holder |
|
Electrical connection 1, function
|
Field device screen |
|
Electrical connection 1, design
|
Angular |
|
Electrical connection 1, connection type
|
Plug |
|
Electrical connection 1, cable output
|
straight |
|
Electrical connection 1, connection technology
|
Sub-D |
|
Electrical connection 1, number of pins / wires
|
15 |
|
Electrical connection 1, occupied pin / wire
|
15 |
|
Electrical connection 1, fastening type
|
2x Schraube 4-40 UNC-2A |
|
Electrical connection 2, function
|
Control screen |
|
Electrical connection 2, connection type
|
cable |
|
Electrical connection 2, connection technology
|
Open end |
|
Electrical connection 2, number of pins / wires
|
15 |
|
Electrical connection 2, occupied pin / wire
|
15 |
|
Operating voltage range DC [V]
|
0 to 30 |
|
Nominal operating voltage DC [V]
|
24 |
|
Line properties
|
Cable track capable |
|
Bending radius, permanent cable placement [mm]
|
>= 33 mm |
|
Cable diameter [mm]
|
6,6 |
|
Cable set up
|
18x0,14 |
|
Conductor - nominal cross-section [mm²]
|
0,14 |
|
Wire ends
|
Wire end sleeve |
|
Protection category
|
IP50 |
|
Information about protection category
|
In mounted condition |
|
ambient temperature [°C]
|
-30 to +80 |
|
Ambient temperature for moving cable placements [°C]
|
-30 to +80 |
|
CE certificate (see declaration of conformity)
|
to EU low voltage directive |
|
Degree of contamination
|
3 |
|
Cable sleeve material
|
TPE-U(PUR) |
|
Cable shield colour
|
#C6C6C6 |
|
Weight
|
100 g / Pcs |
|
GTIN
|
4052568253318 |
|
Customs duty number
|
85444290 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: NEBC (english) , Data sheet |
