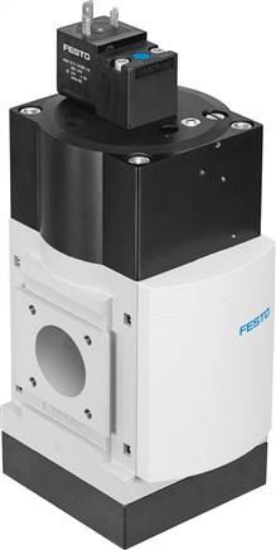

Model series
|
MS |
|
size
|
9 |
|
Pitch dimension [mm]
|
90 |
|
Safety function
|
Venting |
|
Performance Level (PL)
|
Venting / to category 1 performance level c |
|
Construction set up
|
Piston pusher |
|
Actuation type
|
Electrical |
|
Sealing principle
|
Soft |
|
Exhaust function
|
Cannot be throttled |
|
Hand assist actuation
|
none |
|
Reset mode
|
Mechanical spring |
|
Control type
|
pilot operated |
|
Valve function
|
3/2 closed monostable |
|
Operating pressure [bar]
|
3.5 to 16 |
|
Normal nominal flow [l/min]
|
8300 to 16550 |
|
Normal flow Venting 6>0 bar [l/min]
|
19730 to 21720 |
|
Power-on time
|
100% |
|
Coil characteristic value
|
24 V DC: 8,4 W |
|
Permitted voltage oscillations
|
± 10 % |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Material information
|
RoHs compliant |
|
Noise level [Dezibel (?]
|
93 |
|
Protection category
|
IP65 |
|
Medium temperature [°C]
|
0 to 60 |
|
ambient temperature [°C]
|
0 to 60 |
|
Bearing temperature [°C]
|
0 to 60 |
|
Shock resistance
|
Shock test with degree of severity 1 to FN 942017-5 and EN 60068-2-27 |
|
Oscillation strength
|
Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6 |
|
Fastening type
|
pipe installation |
|
installation position
|
arbitrary |
|
Product weight [g]
|
3.200 |
|
Pressure gauge connection
|
G1/4 |
|
Pneumatic connection 3
|
G1 |
|
electrical connection:
|
Wiring diagram Form A acc. to EN 175301-803 |
|
Housing material
|
Aluminium die casting |
|
Seals material
|
NBR |
|
Piston pusher material
|
Brass |
|
Cover material
|
Aluminium wrought alloy |
|
Cover down material
|
PA |
|
Weight
|
3.200 g / Pcs |
|
GTIN
|
4052568217273 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Data sheet |
|
Document
|
Group data sheet: Pressure build-up and venting valves, model series MS |
