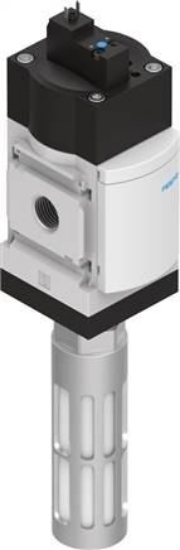

Model series
|
MS |
|
size
|
6 |
|
Pitch dimension [mm]
|
62 |
|
Safety function
|
Venting |
|
Performance Level (PL)
|
Venting/ Category 1, Performance Level c |
|
Information about force dynamic sampling
|
Switching frequency at least 1/month |
|
Construction set up
|
Piston pusher |
|
Freedom from cross-talk
|
yes |
|
Actuation type
|
Electrical |
|
Control air supply
|
Internal |
|
Sealing principle
|
Soft |
|
Exhaust function
|
Cannot be throttled |
|
Hand assist actuation
|
At pre-control solenoid valve tentative pressure build-up and venting valve: Ratcheting, self-resetting |
|
Reset mode
|
Mechanical spring |
|
Control type
|
pilot operated |
|
Valve function
|
3/2 closed monostable |
|
Operating pressure [bar]
|
3 to 10 |
|
C-value []
|
23,2 |
|
b-value
|
0.4 |
|
Normal nominal flow [l/min]
|
5.700 |
|
Normal flow Venting 6>0 bar [l/min]
|
7.600 |
|
Shifting time off [ms]
|
65 |
|
Shifting time on [ms]
|
370 |
|
Power-on time
|
100% |
|
Permitted voltage oscillations
|
± 10 % |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Material information
|
RoHs compliant |
|
Protection category
|
IP65 |
|
Medium temperature [°C]
|
0 to 60 |
|
ambient temperature [°C]
|
0 to 60 |
|
Bearing temperature [°C]
|
-10 to 60 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
|
CE certificate (see declaration of conformity)
|
to EU machinery directive |
|
Food compatibility
|
See expanded material information |
|
Fastening type
|
pipe installation |
|
installation position
|
arbitrary |
|
Product weight [g]
|
1.006 |
|
Pneumatic connection 1
|
G1/2 |
|
Pneumatic connection 2
|
G1/2 |
|
Pneumatic connection 3
|
G3/4 |
|
electrical connection:
|
2-pin |
|
Housing material
|
Aluminium die casting |
|
Seals material
|
NBR |
|
Piston rod material
|
High-alloyed stainless steels |
|
Coil characteristic value
|
24 V DC: 1,8 W |
|
Weight
|
1.006 g / Pcs |
|
GTIN
|
4052568256296 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: Soft-start and exhaust valves, MS series (english) |
|
Document
|
Data sheet |
