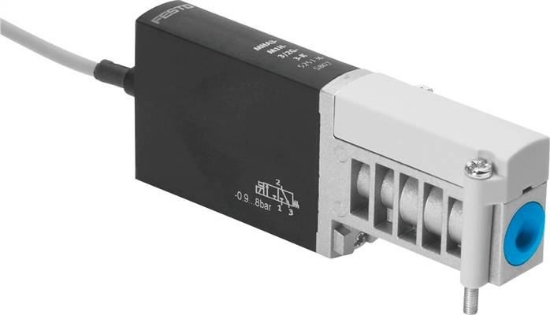

Valve function
|
3/2 closed monostable |
|
Actuation type
|
Electrical |
|
Build.width [mm]
|
14 |
|
Normal nominal flow [l/min]
|
200 |
|
Operating pressure [bar]
|
-0.9 to 8 |
|
Construction set up
|
Pressure-relieved poppet valve |
|
Reset mode
|
Mechanical spring |
|
Protection category
|
IP65 |
|
Permission
|
RCM mark |
|
Nominal width [mm]
|
3 |
|
Pitch dimension [mm]
|
19 |
|
Exhaust function
|
Can be throttled |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Hand assist actuation
|
tentative |
|
Control type
|
Direct |
|
Flow direction
|
Reversible with limitations |
|
Coverage
|
negative Überdeckung |
|
Operating pressure reversible [bar]
|
-0.9 to 1 |
|
Max. switching frequency [hz]
|
280 |
|
Shifting time off [ms]
|
2,8 |
|
Shifting time on [ms]
|
2,3 |
|
Power-on time
|
100% |
|
Coil characteristic value
|
24 V DC: Low current phase 1.6 W, high current phase 6,5 W |
|
Permitted voltage oscillations
|
± 10 % |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Medium temperature [°C]
|
-5 to 40 |
|
ambient temperature [°C]
|
-5 to 40 |
|
Product weight [g]
|
120 |
|
electrical connection:
|
cable |
|
Fastening type
|
on PR strip |
|
Pneumatic connection 1
|
Connection plate |
|
Pneumatic connection 2
|
Connection plate |
|
Pneumatic connection 3
|
Connection plate |
|
Material information
|
Copper and PTFE-free |
|
Seals material
|
HNBR |
|
Housing material
|
Coated |
|
Screws material
|
Steel |
|
Reverse polarity protection
|
Bipolar |
|
Additional functions
|
Spark suppression |
|
Tolerance shifting time on
|
+10%/-30% |
|
Tolerance shifting time off
|
+10%/-50% |
|
Shifting time scatter from 1 Hz [ms]
|
0,2 |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
KC-mark
|
KC-EMV |
|
Limits ambient and media temperature
|
Depending on the switching frequency |
|
Cable length [MTR]
|
2,5 |
|
Cable sleeve material
|
PUR |
|
Weight
|
120 g / Pcs |
|
GTIN
|
4052568161279 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: MH2/MH3/MH4 (english) |
|
Document
|
Data sheet |
