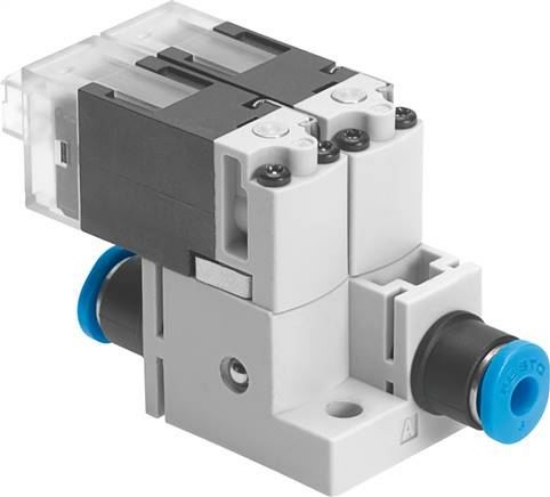

Valve function
|
2x2/2 closed monostable |
|
Actuation type
|
Electrical |
|
Build.width [mm]
|
20 |
|
Normal nominal flow [l/min]
|
30 |
|
Operating pressure [bar]
|
0 to 1.5 |
|
Reset mode
|
Mechanical spring |
|
Protection category
|
IP40 |
|
Nominal width [mm]
|
1,50 |
|
Pitch dimension [mm]
|
20 |
|
Exhaust function
|
Cannot be throttled |
|
Sealing principle
|
Soft |
|
installation position
|
arbitrary |
|
Hand assist actuation
|
tentative |
|
Control type
|
Direct |
|
Flow direction
|
Not reversible |
|
Max. switching frequency [hz]
|
10 |
|
Shifting time off [ms]
|
6 |
|
Shifting time on [ms]
|
6 |
|
Power-on time
|
100% |
|
Coil characteristic value
|
24 V DC: Low current phase 0.7 W, high current phase 3 W |
|
Permitted voltage oscillations
|
± 10 % |
|
Operating medium
|
Compressed air to ISO 8573-1:2010 [7:4:4] |
|
Information about operating and control medium
|
Oiled operation possible (required in further operations) |
|
Oscillation strength
|
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6 |
|
Shock resistance
|
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27 |
|
Corrosion resistant class KBK
|
2 - moderate corrosion stress |
|
Bearing temperature [°C]
|
-20 to 60 |
|
Medium temperature [°C]
|
-5 to 50 |
|
ambient temperature [°C]
|
-5 to 50 |
|
Product weight [g]
|
30,6 |
|
electrical connection:
|
Plug KMH |
|
Fastening type
|
With throughway bores |
|
Pneumatic connection 1
|
QS-4 |
|
Pneumatic connection 2
|
QS-4 |
|
Material information
|
Copper and PTFE-free |
|
Seals material
|
FKM |
|
Housing material
|
PA reinforced |
|
Pneumatic connection 11
|
QS-4 |
|
Vacuum capable
|
yes |
|
Signal condition display
|
LED |
|
Max. length connection cable [MTR]
|
30 |
|
Freedom from cross-talk
|
yes |
|
Operating pressure reversible [bar]
|
-0,95 |
|
Normal flow pmax -> 0 [l/min]
|
30 |
|
CE certificate (see declaration of conformity)
|
to EU EMC directive |
|
Screws material
|
Steel |
|
Width [mm]
|
20 |
|
Weight
|
30,6 g / Pcs |
|
GTIN
|
4052568213411 |
|
Customs duty number
|
84812090 |
|
RoHS compliant
|
Yes |
|
Manufacturer
|
Festo |
|
Document
|
Group data sheet: MH1 (english) , Data sheet |
