MFH-5/2-D-2-C (151851) شیر برقی ایزو فستو

Festo Solenoid valve

کد سفارش تولید کننده: 151851

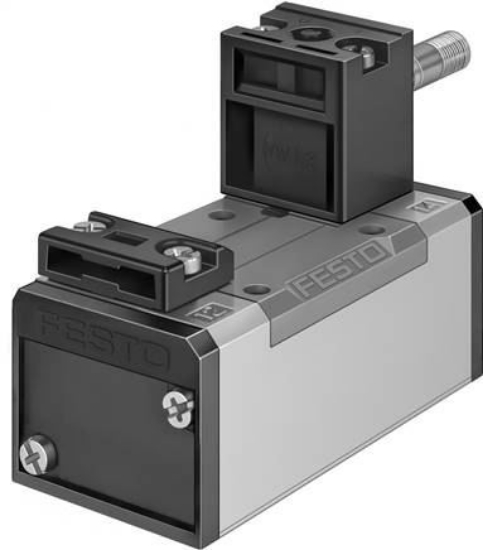

تصویر MFH-5/2-D-2-C (151851)  شیر برقی ایزو فستو

شیر برقی ایزو فستو

Valve function 5/2 monostable
Actuation type Electrical
Build.width [mm] 54
Normal nominal flow [l/min] 2.300
Operating pressure [bar] 2 to 10
Construction set up Piston pusher
Reset mode Pneumatic spring
Protection category IP65
Nominal width [mm] 11,5
Pitch dimension [mm] 56
Exhaust function Can be throttled
Sealing principle Soft
installation position arbitrary
Complies to standard ISO 5599-1
Hand assist actuation With Accessories ratcheting
ISO-Code 251
Control type pilot operated
Control air supply Internal
Flow direction Not reversible
Coverage positive Überdeckung
Shifting time off [ms] 71
Shifting time on [ms] 48
Max. positive test impulse at 0 signal [Mikrosekun] 2.200
Max. negative test impulse for 1 signal [Mikrosekun] 3.700
Operating medium Compressed air to ISO 8573-1:2010 [7:4:4]
Information about operating and control medium Oiled operation possible (required in further operations)
Medium temperature [°C] -10 to 60
Noise level [Dezibel (?] 85
ambient temperature [°C] -5 to 40
Product weight [g] 650
electrical connection: Via f-coil, order separately
Fastening type on connection plate
Exhaust control connection 84 M5
Pneumatic connection 1 Connection plate Size 2 to ISO 5599-1
Pneumatic connection 2 Connection plate Size 2 to ISO 5599-1
Pneumatic connection 3 Connection plate Size 2 to ISO 5599-1
Pneumatic connection 4 Connection plate Size 2 to ISO 5599-1
Pneumatic connection 5 Connection plate Size 2 to ISO 5599-1
Material information RoHs compliant
Seals material HNBR
Housing material Aluminium die casting
Maritime classification see Certificate
Oscillation strength Transport use test with severity level 1 to FN 942017-4 and EN 60068-2-6
Shock resistance Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Weight 650 g / Pcs
GTIN 4052568117214
Customs duty number 84812090
RoHS compliant Yes
Manufacturer Festo
Document Group data sheet: Standard valves to ISO 5599-1 (english)
Document Data sheet
